Silicone Sealant Pigment Mixing Static Mix Machine

US$55,000.00
1-2 Pieces
US$54,000.00
3+ Pieces

Basic Info.

Model NO.
ZR-JT-01
Application Area
Chemical
Condition
New
Mixing Drum Shape
Static Tube
Stirring Type
Laminar Motion
Warranty
1 year
Working
Cycle Operating
Weight
2t
Dosing Qty
3 Dosers
Capacity
1.5-2.0t/H
Control
PLC+Touch Screen
Mixer Type
Static Mixers
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
L1750mmW1400mm (including mixer)*H2600mm
Trademark
ZR
Origin
China
Production Capacity
1.5-2.0t/H

Product Description

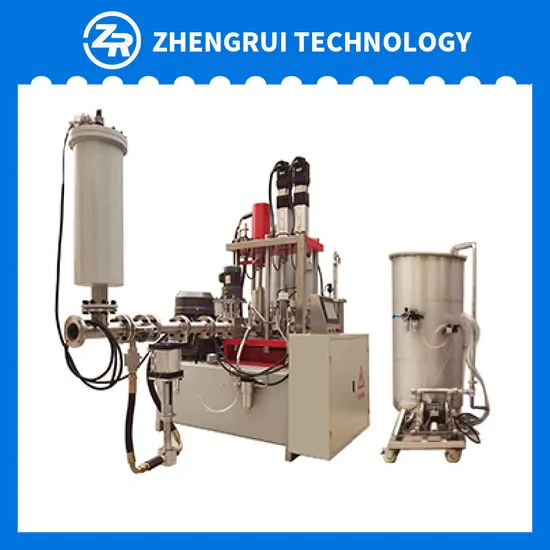

Zhengrui static mixer is particularly suitable for the silicone sealant production with a high cost
performance. Compared with other equipment, it has high efficiency, low energy consumption, small size and easy continuous production. It can automatic dose, automatic feed, synchronous output material. The dosage of additives and colorrant can be adjusted at will, greatly ensuring product stability, reducing the waste of labor and materials.
The use of advanced liquid flow meter real-time monitoring, continuous automatic production, to achieve the synchronous operation of the cylinder, electronic ruler and servo motor, to avoid the ratio error.
Source supply Three-phase AC 380V/50Hz
Power Total power ofthe host system 36kW.(This is full load power.Actually less than 36KW)
Oil pressure system Maximum design pressure of 15MPa
Design cap acity 1.5T-2.0T/ hour
Installation site size L6000mmW3000mm*H2600mm
Quantitative range: 2L /once
Base material cylinder diameter ยข100 mm
Air pressure range Above 0.6MPa
Motor pump set Static 30KW motor, 71cc
Hydraulic pressure Static working pressure 18MPa
System pressure Static 21 MPa
