8mm 12 Axis Camless CNC Versatile Spring Rotating Forming Machine for Small Spring Making Machine & Hydraulic Bending Machine

Product Description

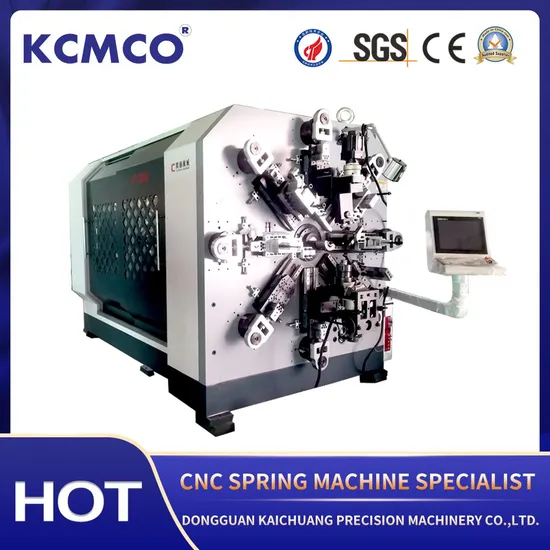

Camless CNC spring former KCT-1280WZ (3.0-8.0mm)Multi-former for springs
This KCMCO Precision 12 axes Camless CNC versatile spring rotating forming machine is provided with Windows 7 operating system, all axes work independently. It has a touch screen surface, remote monitoring and USB port. As an optional a servo spinner and hydraulic cutter can be installed.
Product DescriptionThis KCMCO Precision 12 axes Camless CNC versatile spring rotating forming machine is provided with Windows 7 operating system, all axes work independently. It has a touch screen surface, remote monitoring and USB port. As an optional a servo spinner and hydraulic cutter can be installed.
1.KCT1280WZ 12 axes CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Japan Servo Motors to control the feeding system and Cam system synchronously.
2.It has total 12 axis, the Cam axis, Feeding axis, Quill Rotary axis, the Wire rotary axis and the Spinner axis.
3.This machine is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, and any kind wire forming.
Product Feature:
1.Max 18 Axes
2.All Axes work independently
3.Linux System
4.Japan Servo Motor
5.Remote Monitoring
6.USB Port
7.Optional Servo Spinner
8.Optinal Servo Cutter
9.Wire Diameter: 3.0-8.0mm
10.Suitable for different kinds of tension springs, torsion springs, compression springs,
scroll springs, tower spring, flat wire springs, Drum Springs, Center Tension Springs, Tata Sumo Spring, Compressor Spring, Compressor Springs, Drum Spring, Long Machine Spring, Heavy Compression Spring, Valves Spring, Zig Zag Spring, Torsion Bend Torsion Springs, Coil On Outside Torsion Spring, Coil Bend Torsion Spring, Tension Springs and difficult shaped springs.
Largely increased the spring making range from 3.0-8.0mm, it is precise, stable and easy operating.
Product Parameters

Model	KCT-1280WZ
Number of Axes	12(Max 18 Axis)
Wire Diameter	#3.0-8.0mm
Max Outer Diameter	#130mm
Max Wire Feed Speed	Unlimited
Spring Index	4
Feed Roller Group	4 Groups
Feed Servo Motor	15KW
Quill Servo Motor	1.8KW
Wire Rotation Motor	7.5KW
Former Servo Motor	4.4KW*8
Spinner Servo Motor	1.3KW
Air Pressure	0.2-0.4Pa
Probe	5
Air Cylinder	5
Power	3P/380V 50/60HZ
Product Dimension(L*W*H)	5000*2300*2800MM
Machine Product	12000KG

Certifications
Packaging & Shipping
Company ProfileKCMCO Spring Machinery is a leading China manufacturing vendor of Spring & Wire forming machines. Its wide product range includes CNC versatile spring forming machines, CNC Camless Spring Machines, CNC Spring Coiling Machines, CNC compression spring machines, spring-end grinders, automatic wire feeding machines, Wire Bending&Forming Machines and so on.
The KCT-1280WZ (3.0-8.0mm) is a KCMCO precision 12 axes Camless CNC versatile spring forming machine. The machine is provided with Windows 7 operating system, all axes works independently. The touch screen surface, remote monitoring and USB port make it very easy to operate. A servo spinner and a hydraulic cutter can be installed as an optional.
Our Advantages:
1. The factory has about 20 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spare parts & Worktable, Importing Japan SANYO and Yaskawa motors, Importing Taiwan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & Wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in our company.
Our Mission
KCMCO strives to provide our customers with products and services that meet and exceed their expectations. Our commitment to customer service and the efforts we put into creating means we go to find innovative to new challenges. As a customer -oriented company, we have the ability and core technology to move quickly and service numerous markets.
FAQQ1: How to place the order?
A1: You can place the order by email us or reach us directly with your contact information.
Q2: What is the MOQ?
A2: One set. The more you have, the better price you will get.
Q3: What is the payment term?
A3: The payment term is 30% deposit as PO confirmation, and 70% before the shipment.We also accept other payment term.
Q4: What is the delivery time?
A4: Normally the delivery time of the machine is 30-40 working days after receiving deposit.But it all depends on machine models you place the order. Some of them could be shipped within 7 working days if we have that machine available in our warehouse.
Q5: What is the guarantee period of the machine?
A5: The guarantee period is one year for the core components like motor from the date of B/L.
Q6: What information do we need to offer you best quotation?
Q6: We need you to provide original SPRING drawing which include MATERIAL, WIRE DIAMETER, MAX OUTER DIAMETER
SPRING COIL and SPRING HEIGHT.
1.MATERIAl: SWB
2.WIRE DIAMETER: 0.35±0.015
3.MAX OUTER DIAMETER: 2±0.05
4.SPRING COIL: 5
5.SPRING HEIGHT:138.2+0 0.35Related ProductsKCMCO Spring Machinery is a leading China manufacturing vendor of Spring & Wire forming machines. Its wide product range includes CNC versatile spring forming machines, CNC Camless Spring Machines, CNC Spring Coiling Machines, CNC compression spring machines, spring-end grinders, automatic wire feeding machines, Wire Bending&Forming Machines and so on.
The KCT-1280WZ (3.0-8.0mm) is a KCMCO precision 12 axes Camless CNC versatile spring forming machine. The machine is provided with Windows 7 operating system, all axes works independently. The touch screen surface, remote monitoring and USB port make it very easy to operate. A servo spinner and a hydraulic cutter can be installed as an optional.

---
