High-Performance Wood Saw Machine with Sliding Table Upgrade

Product Description

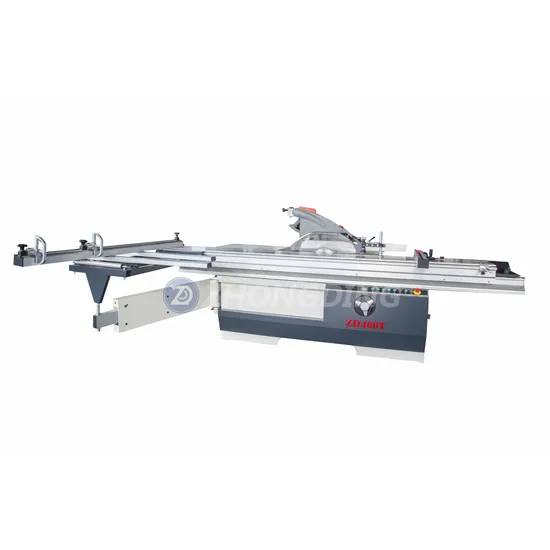

3200mm High Precision Sliding Table Saw Electronic Panel Saw Wood Cutting Machine
ZD400T
This kind of sliding table saw of our company is completely competitive.We use the Odento structure to improve machine quality.The quality of our raw materials is high.Fuselage with the national standard widening 6mm steel laser cutting, the corner at the end of the whole plate bending treatment, reduce welding, solid and beautiful without burr. Product Parameters

Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400mm
Max cutting height 90°/45°	120mm / 80 mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Gross weight	1100 kgs
Overall dimension	3250x3150x900 mm

Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Relying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as polishing machines,palner machine, press machine etc,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North America,and Australia.Bring our products and services for more than 66 countrys people and customers.We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Product Effect
With our machines, we can make high quality products.
Detailed Photos
High quality accessories
Our products has a plenty of advantages.
This design motor base structure is mounted on the table saw frame to keep high flatness for the cast iron working table.While our structure is embedded in the frame of the machine, when adjusting the flatness of the machine body, the internal structure of the fuselage will not be affected, thus ensuring the stability of the machine.

This design can give end user much more advantage,
We add this screw, the fence can be fixed both side, so that it is easier for operator to put the panels both side , very easy to operate.

We have more than just these benefits, if you are interested, please contact me directly.
Panel saw optional parts:
Pneumatic pressure device,magnetic ruler and so on.
Not just these two accessories, but other parts as well. Packaging & Shipping
