Woodworking Machinery Euro Wood Pallet Nailing Making Machine Wooden Nailer Machine

Product Description

Product Description

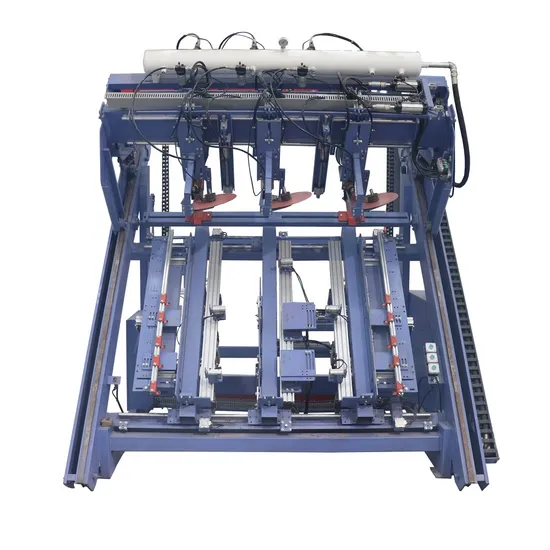

Automatic Wooden Pallet Nailing Machine (Euro Type)

Model	AEPN-1300
Wood pallet length	700-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	6P CN70,CN58
Weight	2000kg

Related Products
Automatic Wooden Pallet Nailing Machine (American Type)
The automatic wooden pallet nailing machine is mainly used in the production of American standard pallets.
This machine is equipped with a pallet finished product turning and picking device, which has a high degree of automation and a smooth and compact process. It can be equipped with an automatic stacking for one-stop nailing and stacking production.
The whole machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard; compared to the domestic conventional production technology, multiple processes are completed at one time, which greatly improves the work efficiency.

Model	AWPN-1300
Wood pallet length	600-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	3P OR 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410

Semi-automatic horizontal nailing machine

Model	AWPN-1500
Wood pallet length	600-1300mm
Wood pallet width	800-1700mm
Feeding mode	Hand pull
Palletizing mode	Automatic
Operational mode	Pneumatic operation
Voltage	380V,480V or other
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Palletizing quantity	10P
Weight	2000kg
Overall dimension	3800*2200*2217mm
Package size	2500*2200*2500
