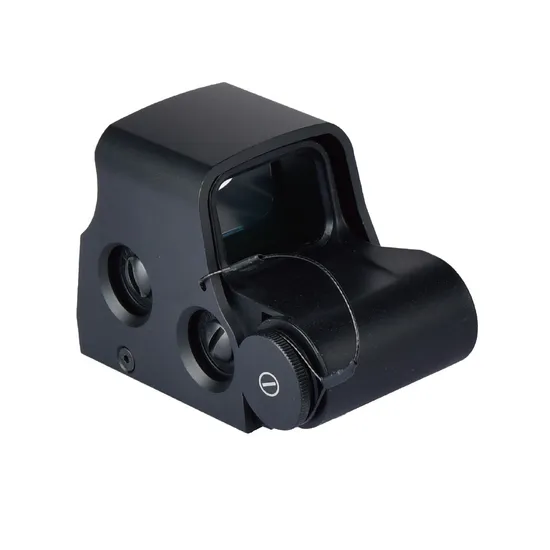

Holographic sights is Sichuan university of electronic science and technology cooperation with Detyl Optoelectronics based on the United States EOTECH products research and development of a high performance,High precision dual laser holographic sights day and night.It has the advantages of small volume, light weight, easy to use, dual use-day and night, no parallax, and so on, is the best choice of the short weapons quickly aim. Very suitable for public security, customs, armed p olice special security applications.
| | Model | DT-QX81 |
| Optical system | Projection method | Full No parallax Reverse projection |
| Magnification | 1X |
| Distance of pupil | Unlimited |
| Material | Optical solid glass |
| Dimensions | 30x23+/-1mm |
| Glass coating | Anti-glare (MIL-0-13830A) Antifogging |
| FOV(100mm) | >15(°) |
| Graduation cursor | Graduation type | Red,infrared Reverse projection(NV) |
| Daytime brightness adjustment | 146000:1 20 steps |
| Nighttime brightness adjustment | 1280:1 10 steps |
| Power spec. | Battery type | CR123(A)x1 |
| Battery life | >550H (daytime mode step 2) |
| Low battery warning | Power Low than 20%,flash cursor |
| Auto shut off | 8H/4H no operation auto shut off(can be set) |
| Graduation mil | Mil range | +/-40MOA |
| Minimum mil | 1/2MOA |
| Mechanical | Mountting Fixture | MIL-STD-1913 |
| Lock | screw |
| Remountting accuracy | 2MOA |
| Product-Size | Dimensions | <95x55x65mm |
| Weight(No battery) | <230g |
| Environmental adaptation | Environment specification | MIL-STD-810F |
| Waterproof | IP65(IP67 optional) |
| Temperature(ºC) | Operating:-40~+65 Storage:-50~+75 |
