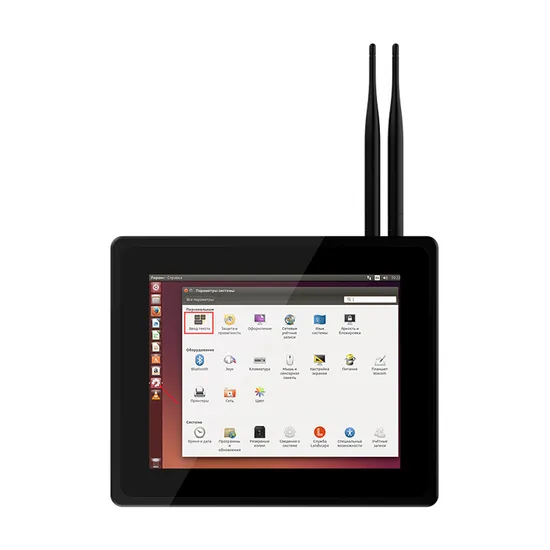

10.4 Inch Capacitive IPS Touch Screen Industrial Panel PC

Product Description

Product Description

System	CPU	Intel® Ivy Bridge /i5-3317U
	RAM	4GB (8GB option)Onboard 1 strip of 204 Pin DDR3 SO-DIMM memory slot ,Memory supports up to 8GB
	Hard Disk	128GB
	Operating system	Windows 10
	WiFi	300Mbps @ 400GI (Max.) wireless module, signal omnidirectional coverage 20~30 meters
	Graphics card	Intel CPU built-in graphics core
	Audio	Onboard ALC269 audio decoding controller; power amplifier NS4251 3W@4Ω MAX
	Network	1 X Realtek 8111H/8111G Gigabit Ethernet
Display	Size	10.4 inch
	Resolution	1024*768
	Contrast ratio	1000 : 1 (Typ. ) ( TM)
	Screen type	a-Si TFT-LCD
	Grayscale response time	30(TYP. ) (Tr+Td) ms
	Contrast ratio	1000 : 1 (Typ. ) ( TM)
	Pixel pitch	0.264 (per one triad) x 0.264
	Backlight type	WLED , 70 hours with LED driver
	Brightness [ cd/m2]	250(Typ. )
	Viewing angle	80/ 80/ 80/ 70 (Typ. ) (CR≥10)
	Display color	16. 7M , 72% (CIE1931)
Touch	Touch type	Capative touch
	Single point life	> million times
	Touch strength	15 40g
	Surface hardness	6H
	Glass type	Chemically strengthened plexiglass
Interface	USB	2*USB3.2 Gen 1 (5Gbps), 2 * USB2.0 (optional 1 * LAN2)
	Extended display	15-pin standard VGA female port
	HDMI	Standard HDMI Type A port,HD digital signal output display
	VGA	D-Sub, the analog signal output is shown
	Network Interface	On board 1 X Realtek 8111H/8111G Gigabit LAN
	Power connector	2. 5MM 12V 5A power port
	Antenna	50MM omnidirectional 2.0dBi gain frequency range 2400 -2500MHz
	Power on/off button	CLR _ CMOS , CMOS Clear key (press 4s Clear _ CMOS)
	Audio	1*3.5 brush LINE-OUT, 1*3. 5MM MIC-IN
Environment	Operating temperature	-10 ºC ~60 ºC
	Working humidity	20%~80%
	Maximum power consumption	≤48W
	Working current	≤4A
	Protection level	Front panel IP65 waterproof and anti-dust
Others	Material	Aluminum alloy
	Color	Black
	Warranty	1 year
	Packing List	All in one tablet PC, Power cable, Adapter, buckle accessories

Company Profile
Our Teams:
Certifications
FAQ
1.Can you accept sample order?
A:Yes.Trail orders are acceptable
2.How long does it take to deliver the sample?
A:It depends on different products,Most models are available. If OEM, it usually takes 10-15 days.
3.What's your Mini Order Quantity(MOQ)?
A:It depends on different products,for AIO products, there's no MOQ,
4.What payment term you can accept?
A:For sample, Trade Assurance or West Union is available,for big order by T/T,West Union.
5.How to ship the goods to us?
A:For sample or small quantity,by Express .Such as DHL, FedEx, UPS etc
For big orders,normally by air or by sea. Also by Express
6.Can we have our own logo printed on the product or package?
A:For sample,it usually be neutral.For big order,it support customized logo & packages..
7.How much will the customized logo cost?
A:For big order, if your quantity up to our MOQ, it usually be free.

---
