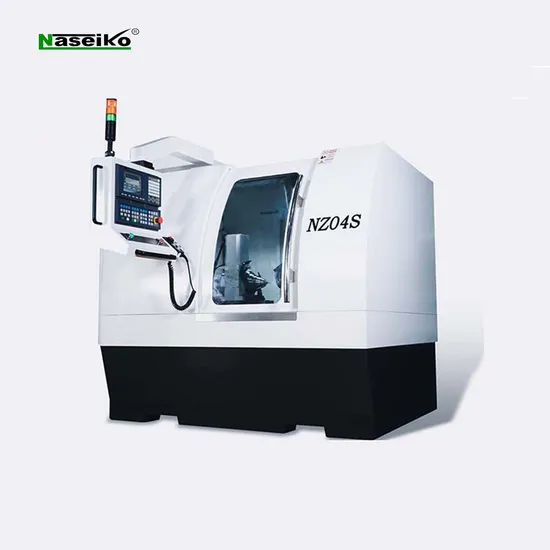

CNC Tool Grinding Machine Nz-04s CNC 4 Axis Automatically Metal Grinding Machine High Precision Cut Tool Grinder Machine for Cutting Tools

Product Description

Detailed Photos
Product Description
Suit for standard milling cutters, aluminum processing cutters, arylic milling cutters, chamfering cutter and tap slotting.

The multi-station and multi wheel group grinding ensure the quality and efficiency of tools.

Front and rear doors of the grinder could easily unrestricted debugging and maintenance.
The protective cover keep safety when production.

All axes are equipped with high precision and resolution imported servo motors and screw guides for high quality and efficiency.
X-axis/Y-axis, horizontal straight CNC axis, Taiwan servo motor, THK precision ball screw, THK precision roller guide rail.

Z-axis, vertical straight CNC axis, Taiwan servo motor, THK precision ball screw, THK precision roller guide rail.

A-axis, rotating CNC workpiece axis, DD direct drive motor.

Z-axis, increasing the angle rotation center of the column, and configuring an angle encoder to ensure repeated positioning accuracy when replacing different thread angles and adjusting the size efficiently.

Marble overall.

Sealed hood with painting for easy adjustment and maintenance.

The CNC operation panel is installed upon the hood with magnetic easily movable handwheel.

A special high-speed slotted electric spindle, which could be installed with one to three grinding wheels. It would be disassembled as a whole to the grinding wheel trimming machine.

The side and vertical shafts adopt Taiwan's high-precision direct connected electric spindle.

The spindle motor adopt variable frequency control regulation.

The machine is equipped with sealed tubular oil-proof fluorescent lamp.

Installed with external automatic loading and unloading robet for increasing the lifespan. (Optional)

Product Parameters

PROJECT	UNIT	NZ-04S
Linear axis	-	CNC four axes linkage linear axis
Drive	-	Imported servo motor drive
Stroke (X/Y/Z axis)	mm	240/ 300 / 190
CNC system resolution (X/Y/Z/A axis)	mm	0.0001
Minimum resolution for programming of handwheel feed (X/Y/Z/A axis)	mm	0.0001
THK screw (X/Y/Z axis)	-	BN-FN25-C3
THK guide rail (X/Y/Z axis)	-	SHS-25V ( level P)
Repositioning accuracy (X/Y/Z axis)	mm	0.003
Workpiece rotation axis (A/B axis)	-	(rotation shaft)
DD servo drive (A/B axis)	-	(direct drive)
Quick movement (X/Y/Z axis)	m/min	7.5
Maximum workpiece weight	kg	5
Linear resolution	mm	0.0001
Linear repeating positioning accuracy	mm	0.003
Rotation resolution	mm	0.0001
Rotation Repeating Positioning Accuracy	degree	0.001
Spindle power	kw	15(optional: 15-20KW permanent magnet frequency control motor)
Machine weight	kg	4000
Total power	kw	≤30kw

---
