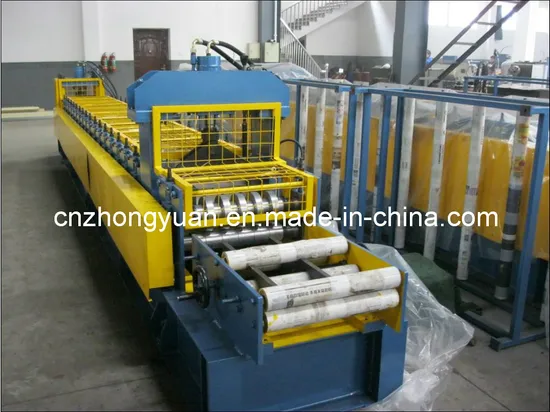

Roller Metal Shutter Door Panel Cold Roll Forming Machine Equipment with ISO9001/Ce/SGS/Soncap

Product Description

Roller Metal Shutter Door Panel Cold Roll Forming Machine Equipment with ISO9001/Ce/SGS/Soncap
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available


Machine material
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

Parameters

Shutter Roll Forming Machine
Technical parameter
Item		Specification
Raw Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	05-0.7
	Yield strength(mpa)	235
Roller material		45# steel , coated with Chrome
Shaft for rollers		Solid shaft with 55 mm,processed with cylindrical grinder
Forming speed(m/min)		About 30
Output speed(m/min)		About 12 for 6m length sheet
Speed adjusting mode		Mitsubishi frequency transformer
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Nemicon Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		5.5KW
Total power(kw)		7.7KW
Process flow		Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table (auto. Stacker for option)		1set

About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!

FAQ:
FRQ
1) Q: Are you manufacturer or trading company?
A: We are professional manufacturer for metal cold roll forming machine since 2003.
Our efforts are devoted to the research and development of how to provide customers with high-quality and durable roll forming machines.
2) Q: Do you provide installing and training overseas?
A: Yes. We can send technician to install the machines when you get machines in your factory.
Also we provide operation manual and installation video to guide your installation.
3) Q: How is your after sales support?
A: For our roll former, 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
4) Q: How does your factory do regarding quality control?
A: We choose famous steel company to buy raw material for our machines,
All-in -House processing way to guarantee part of machines quality,
Our company has successfully established and passed the ISO9001 quality insurance system,
Also they had been approved with CE certificate.
Quality control complies with ISO9001 .
5) How can I trust you that machines pasted testing running before shipping?
A: 1) Each machine will be inspected in our Quality Inspection Department .
Buyers will get detail inspection video and record for his ordered machines.
2) We welcome your visit us and test machine by yourself in our factory. Or you arrange your friends or partner in China to do inspection before delivery.
6) Q: Do you sell only standard machines?
A: No. We can design machines as per your request. For example, your profile drawing, your special technology request, etc.
7) Q: What is your warranty?
A: For our made roll forming machines , guarantee 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
8) Q: How do you guarantee I can get good quality machine from your company ?
A: We say you can get good quality machine from us not to boast about how great we are. We have so many successful cases with our customers. For example, one customer from Macedonia sent email to feedback that he is happy for our made one set of roof and wall roll forming machine and one set of step tile machine which were bought in 2009.

---
