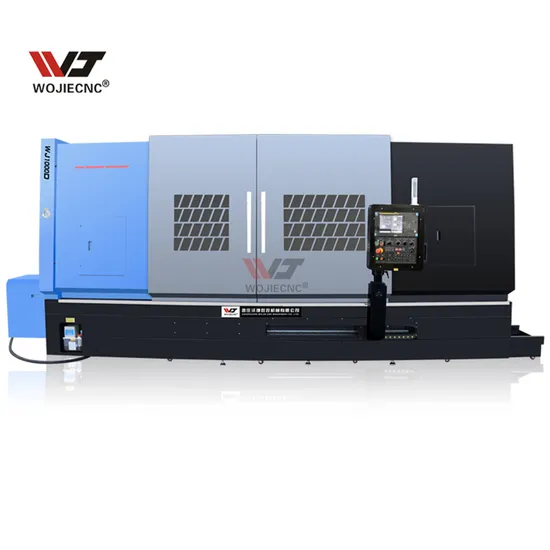

Wojie Wj1000d Heavy Duty CNC Slant Bed Lathe 2000 Length Turning Lathe Siemens Fanuk GSK System Automatic CNC Lathe with Live Tooling

Product Description

Product Description
The 45° inclined bed and the base are integrally cast with high-strength cast iron. The finite element analysis has been used to optimize the arrangement of the reinforcement ribs, high-strength cast iron material, resin sand molding, and sufficient secondary aging and natural aging, which make the basic parts of the machine tool have high rigidity and ensure the stability of the machine tool in long-term use; combined with automatic forced lubrication, the friction resistance of the feed movement is greatly reduced, thereby improving the accuracy and life of the machine tool. Product Parameters

Technical specifications		Unit	WJ1000D
Processing range	Maximum rotation diameter on the bed	mm	Φ950
	Maximum rotation diameter on the saddle	mm	Φ780
	Center distance	mm	1100/2100/3100
Spindle	Spindle head type	mm	A2-11
	Spindle through hole diameter	mm	105
	Bar diameter	mm	92
	Spindle speed	r/min	1400
	Main motor rated output	Kw	30KW
	Spindle maximum output torque	NM	4000NM
Chuck	Hydraulic chuck	inch	24
Tailstock	Tailstock sleeve taper	mm	MT6 Internal rotation
	Tailstock sleeve diameter	mm	160
	Tailstock sleeve stroke	mm	200
	Tailstock moving stroke	mm	1900
	Tailstock moving form	/	Hydraulic programmable fully automatic
Saddle	Tilt angle	DEG	45 °
	Moving distance X	mm	370
	Rapid moving speed X/Z	m/min	16/16
	Servo motor X/Z	KW	3/3
Turret	Type	Servo Hydraulics	BMT65 Horizontal 12station
	Time between tool changes	S	0.5
	Number of tool positions	/	12station
	Tool size (turning/boring)	mm	32×32/80(custom made)
	Coller chuck model	/	ER40
	Power turret power	KW	11-15
Dimensions	6000/7000/8000x2300x2400mm	Net weight/gross weight	9500/12500/16500KG

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Hydraulic chuck Standard configuration:15" Optional configuration: 16" / 14" hydraulic chuck
Turret For CNC Lathe Machine, standard is hydraulic turret For CNC Turning Center,standard is power Turret	Tailstock Standard configuration:Hydraulic tailstock Optional configuration: Programmable tailstock
2-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw Llead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Electrical part Standard configuration: DELIX

Optional Accessories

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
