US$15,800.00-235,800.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Machinery & Hardware, Construction, Stone Industry
Crushing Degree
Intermediate Crusher
Certification
CE, ISO, GOST, SONCAP, CCC, API
Advantage
High Working Efficiency
Services
Providing Design Project
Control System
Fully Automatic Control System
Transport Package
Nude Packing
Production Capacity
30-200t/H
Product Description
Product Description

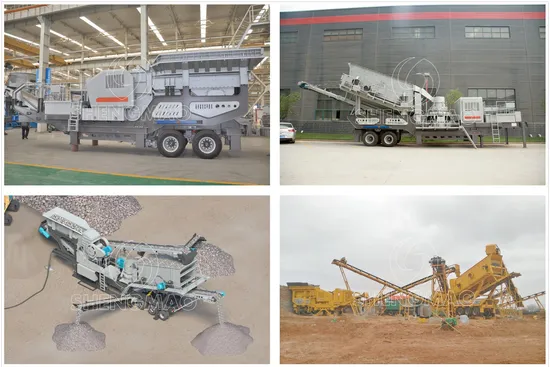

Mobile Crushing Plant is a series of rock and construction waste crushing equipment. It has greatly expanded the concept of crushing operation. Its design concept eliminates the environment, the ground, complex basic configuration and complex logistics which bring customers breaking barriers.
Input size: 0-200mm
Capacity: 50-790tph
Processed Materials: Andesite, river stone, limestone, Iron ore, copper ore, gold ore, manganese ore, gravel, granite, basalt,mine ore,quartz, diabase,etc. (For hard stone).
Applications:Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
Specifications of High Quality Mobile Crushing Plant
Features: 1.Mobile Crusher is high performance of secondary crushing machine.
2.High capacity integral crushing&screening
3.Belt conveyor self-loaded
4.The automatic-portable conveyor for return material make the installation of the whole plant quite easy.
5.Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
Technical Data//Model
| Y3S1848CS75
| Y3S1860CS160
| Y3S1860HP220
| Y3S2160HP220
|
Transportation size(mm)
| 12000x2800x4300
| 13400x2820x4350
| 13400x2820x4350
| 13400x2820x4350
|
Weight(t)
| 28
| 46
| 42
| 43.5
|
Tire Configuration
| Dualaxial
| Triaxial
| Triaxial
| Triaxial
|
Cone Crusher
| CS75
| CS160
| HP220
| HP220
|
Discharging Belt Conveyor
| B800×6M
| B800×8M
| B800×8M
| B1000×8M
|
Vibrating Screen
| 3YZS1848
| 3YZS1860
| 3YZS1860
| 3YZS1860
|
Electric control
| standard
| control box + control panel
| control box + control panel
| control box + control panel
| control box + control panel
|
Optional
| Control box + LCD
| Control box + LCD
| Control box + LCD
| Control box + LCD
|
Hydraulic leg
| standard
| 4
| 4
| 4
| 4
|
optional
| 2
| 2
| 2
| 2
|
Hydraulic cycliner
| standard
| 0
| 0
| 0
| 0
|
Optional
| 2
| 2
| 2
| 2
|
Genset(optional) (Kw)
| 180
| 320
| 440
| 440
|
Our projects
Company Profile
Henan Shengmao Machinery Co., Ltd., founded in 2001, located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development,production and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales and more than 500 technicians.
Main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw
conveyor, brick making machine and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, and Argentina etc.
Our Services
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week;
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
>>
