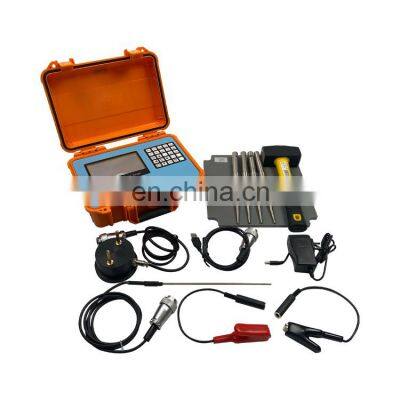

Product DescriptionThe 4114 non nuclear soll density guage(EDG) accurately measures soil density,moisture content and compaction in roads and foundations.the measurement accuracy depends mainly on the correct use of the operatorEquipment nameSoil nuclear density meterSpecification modelLOVELY-4114Maximum RS-232 cable length100cmInternal power supply12V nickel-hydrogen,2000mAh capacityBattery lifeAbout 24 hoursOperating temperature range0 ~ 50℃Humidity range5% ~ 90%RHEDG controller weight8kgEDG controller size300*260*140mmEDG accessory weight vAbout 3kg 1. Soil model is the combination of soil electronic data and soil physical data input by users, and it is the basis of testing parameters in a similar soil characteristic area.2. When making a soil model, EDG is needed to collect electronic signals at different test points . Each test point needs to collect an electronic signal. At the same time, sand cone test is needed to obtain the physical characteristics of the soil, such as wet density, dry density and moisture content. The maximum dry density of the soil is measured in the laboratory, and then these data are input into the instrument so that the electronic data can be correlated with the physical data.3. At least three test points (soil test) are required for soil moulding. The more test points, the more representative the soil model will be. Moreover, the larger the density and water content range covered by the test points, the more accurate the soil model is.4. After the soil model is made, EDG can be used for field test. The test area is the area where the experimenter intends to test and the tested soil has the same physical characteristics.5. A soil model is usually made for each different test area. Different projects need different soil moulds. Once the soil model representing this area is successfully made, the soil characteristics of any test point can be quickly and accurately measured by EDG through field test.6. The actual test is to calculate the physical properties of soil by comparing the electronic data collected from the test points with the soil model. Company ProfileCangzhou Lovely Technology Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQ Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have?A:We have ISO 9001. Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering?A:General it is about 7-20 days. Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
