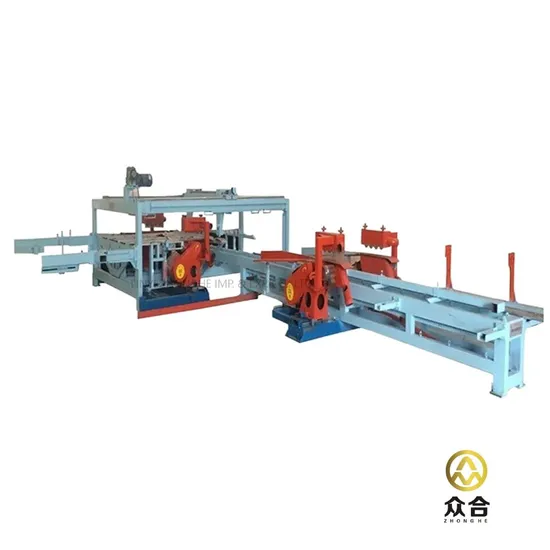

Automatic Plywood Double Size Wood Cutting Edge Trimming Saw Machine

Product Description

Edge Trimming Saw Machine Product Description
Edge trimming saw machine is a kind of professional equipment used in plywood production, it is mainly used to cut plywood into different sizes of sheets. Its design principle includes the following aspects:
1. Cutting method: There are two kinds of cutting methods, namely longitudinal cutting and transverse cutting. Longitudinal cutting refers to cutting the plate into strips of different widths along the longitudinal direction, and transverse cutting is cutting the plate into plates of different lengths along the transverse direction.
2. Cutting accuracy: The cutting accuracy of the plywood crossbar saw refers to the error between the size of the cut sheet and the set size. The cutting precision directly affects the quality and production efficiency of plywood.
3. Cutting speed: The cutting speed of the plywood crossbar saw refers to the number of plates that can be cut per unit time. The speed of cutting is also one of the important factors affecting production efficiency.

Product Parameters

1	Model	DDS48
2	Main frame material	100*120 mm square steel tube
3	Cutting size	1220*2440 mm
4	Cutting thickness	maximum 60 mm
5	Diagonal tolerance	less than 1 mm
6	Straightness tolerance	less than 0.5 mm
7	Saw head	Casting, fine finishing
8	Bearings	NSK (Japan brand)
9	Voltage standard	380V, 50HZ
10	Pneumatic element	AKS
11	PLC brand	SIMENS
12	Touch screen displayer	SIMENS
13	Main elctrical parts	CHINT
14	Inverter	DELTA
15	Feeding speed	0-30 meters per minute, adjustable
16	Line speed	5315 meters per second
17	Saw blade speed	6800 turns per minute
18	Electrical control panel	dust-free and powder painting
19	Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
		small saw blade head 1. 1KW, 4 pieces
		lift table motor 3 KW, 1 piece
		working table motor 1.5 KW, 2 pieces
20	The first saw guide rail	30 mm diameter , Six arrises guide
21	The second saw guide rail	30 mm diameter , cylindrical guide
22	Saw blade	4 big saw blade, 4 small saw blade (Germany BAK)
23	Gross weight	4800 KGS (It needs 1*40HC container to load)

Detailed Photos

Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.

2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


Packaging & Shipping
Packing and Shipping

1. Disassemble the whole machine into parts and put them into containers for easy transportation.
2. The container will be transported to the port by special car.
3. A professional shipping team will bring your products to the port you need
4. Take the bill of lading to the port to pick up the goods

Certifications
Certifications
FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
