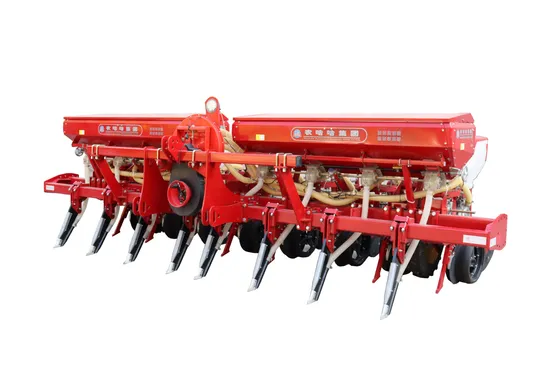

New Model Pneumatic Precision Corn Planter/Precision Seeder/8 Rows Corn Planter

Product Description

New Model Pneumatic Precision Corn Planter/Precision Seeder/8 Rows Corn Planter
Product Description
1.This machine is matched with a large tractor. It adopts a three-point suspension device to connect the main engine. The fan is driven by the output shaft of the tractor through the universal joint. Which has the function of sowing and fertilizing. It is suitable for sowing corn and soybeans. While sowing, granular fertilizer is sown into the ground to promote the early development and early growth of seedlings.

2.The seeder is driven by the ground wheel, and the air suction planting mechanism can achieve single grain fine sowing. The sowing is accurate, does not hurt the seeds, saves seeds and labor, and the seedlings are strong.
3. The drive shafts of each row are integrated, with unified drive, consistent speed and large transmission power. Each sowing assembly can independently complete all sowing processes such as trenching, seeding, soil covering and suppression under the traction of the tractor. The rows spacing can be adjusted according to needs.
Product Parameters

Model	2BYQF-4E	2BYQF-5E	2BYQF-6E	2BYQF-8E	2BYQF-5D	2BYQF-6D	2BYQF-8D
Required power (hp)	50-100 hp	70-130 hp	90-150 hp	120-200 hp	90-150 hp	95-160 hp	130-220
Overall dimension(cm)	183×234×136	187×270×138	187×360×138	1874×480×138	225×280×145	195×360×145	195×480×145
Seeding width (cm)	234	270	360	480	280	360	480
Weight (kg)	720	850	1130	1410	1100	1380	1650
Row spacing(cm)	45-70	45-65	45- 60	45-60	45-60	45- 60	45-60
Planting rows	4	5	6	8	5	6	8
Working Efficiency(Acre/h)	1-2	1.2-2.5	1.5-2.8	1.8-3.5	1.3-2.7	1.7-2.9	2.0-3.8
Fertilizer hopper capacity (L)	320	400	260×2	320×2	450	300×2	350×2
Seeds hopper capacity (L)	18×4	18×5	18×6	18×8	35×5	35×6	35×8
QTY LODE OF THE CONTAINER	20' / 8sets 40' / 22sets	20' / 7 sets 40' / 18 sets	20' / 6 sets 40' / 15 sets	20' / 5 sets 40' / 12sets	20' / 6 sets 40' / 14sets	20' / 5 sets 40' / 12 sets	20' / 4sets 40' / 8 sets
Fertilizer depth(mm)	60-80
Sowing depth(mm)	30-50
Type of fertilizer feed	Nylon big external grooved sheave
Opening share of fertilize	Shovel type opening share/double disc
Type of seeding mechanism	Pneumatic and Disc seeding type
Linkage	Three-point rear suspension
drive style	Land wheel
Seeding crop type	Corn, soybean,sorghum and other beans etc.
Sowing depth(mm)	30-50

Detailed Photos
More choices for choosing the fertilizer opener:
These are three kinds of fertilizer openers, if your field has been cultivated by the disc plough, disc harrow, or the rotary tiller, you can choose the B or C fertilizer openers, otherwise you have to choose the A fertilizer opener. A fertilizer opener is more suitable for the No-tillage field, hard field.
All of them have the safety pin, when encountering the stones, tree root, and other obstacles, the safety pin will be broken to guarantee the whole opener integrity.
Fan of the pneumatic corn planter
The fan of the planter is imported from Turkey, good quality with durable characteristic, good performance with long using life. It totally has 12 fan inlet window, it can matched with from 4 rows to 12 rows corn planter.
The below red spare part is the gearbox. Good quality with many kinds of planting spacing.
Company Profile
Hebei Nongon is a window of exporting in Hebei Nonghaha from 2021. Our company CEO established this foreign trading company especially used to export our machines to all of the world. Hebei Nonghaha Agricultural Machinery Limited Company was founded in 1990 and became Hebei Nonghaha Group in 2002. Located in Shenze County, Shijiazhuang City, Hebei Province, Our company is one of the biggest manufacturers of agricultural machines in China, which covers an area over 200,100 square meters with 1500 workers. The total assets of our group are about RMB300 million. Now, our company has four subsidiary companies, which are seeding company, harvesting company, heating boiler company and agricultural machine parts company. Our company is the crackajack contribution unit of China Circulating Association.Our products are divided into four series with 60 types, which are seeders, corn harvesters, rotating & harrowing machines and heating boilers. Seeders are our leading machine whose cost-volume-profit relationship has ranked the first in consecutive 10 years, which also sell very well in more than 20 countries in the world with their top-quality, low price, and perfect after service. The most important that is Nonghaha series seeder is the only one kind of product of exempted from inspection in China. Our company has become Chinese private science & technology enterprise.Our group bears many key scientific items of our country, cooperating with China Agricultural University, Hebei Agricultural University and Hebei Agricultural Machinery Research Institution and other famous science research centers, absorbing many experts and scholars to devote themselves to Agricultural machine development. Our group adheres to the strategic policy of "rooting in countryside, servicing for agriculture, bringing benefit for farmers, carrying forward quickness, innovational, practical, honest spirits", and abides by management concept of "human-oriented, scientific and technological innovation", and carries out the magnificent engineering of reigning supreme as the finest in the country. Our company is developing quickly in order to accelerate the speed of agriculture mechanisation in the worldwide.
Workshop photo
FAQ
Q1: Can you provide OEM or ODM service?
A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.
Q2: What is the sample lead time & production lead time?
A3: T 15~25 days after received your deposit
Q4: What's your payment terms?
A4: TT or LC at sight.
Q5: What is your terms of delivery?
A5: FOB/CIF/By air as you like.
