High Pressure Blowing Plastic PE Film Blown Extruder Machines

Product Description

Product Description

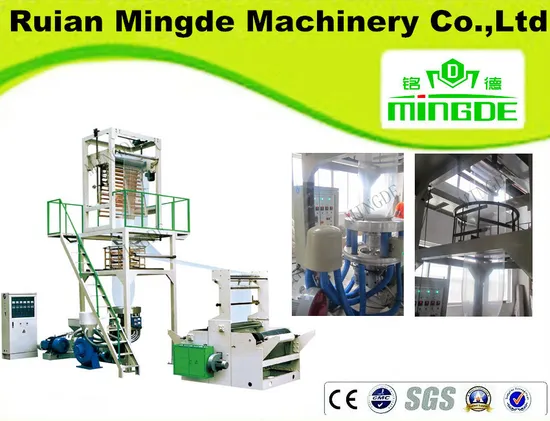

MD-HL rotary head PE film blowing machine
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.
We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.

Model	MD-HL50	MD-HL55	MD-HL60	MD-HL65
Suitable Material	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15
Max Extrusion Output	HD:40kg/hr LD:50kg/hr	HD:50kg/hr LD:60kg/hr	HD:60kg/hr LD:70kg/hr	HD:80kg/hr LD:100kg/hr
Extrusion Unit
Gear Box	146	173	173	200
Screw Diameter(mm)	φ50	φ55	φ60	φ65
Screw's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	250W*2	250W*2	250W*2	250W*2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	11	18.5	22	30
Extrusion Die
Die Size (mm)	HD:φ60 LD:φ150	HD:φ80 LD:φ180	HD:φ80 LD:φ180	HD:φ120 LD:φ250
Die rotary device	360°Continue Rotary	360°Continue Rotary	360°Continue Rotary	360°Continue Rotary
Screen changer	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	2	2	2	2
Air Ring(mm)	φ620	φ760	φ760	φ760
Cooling Blower(kw)	1.5	2.2	2.2	3
Center steady stick	1pcs	1pcs	1pcs	1pcs
Take-up Unit
Roller Width(mm)	φ138*650	φ138*850	φ138*1100	φ138*1300
Embossing roller width	550mm	750mm	1000mm	1200mmmm
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm
Winding Unit
Type of Winder	Surface friction winder	Surface friction winder	Surface friction winder	Surface friction winder
Roller Width (mm)	700	900	1100	1300
Winding Motor(KW)	6	10	10	16
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins(m)	4.5*2*4.3m	4.5*2.2*4.5m	5*2.5*4.8m	5.5*2.8*5.2m

---
