Factory Direct Electrofusion Welding Machine for HDPE Pipes and Fittings

Product Description

Product Description

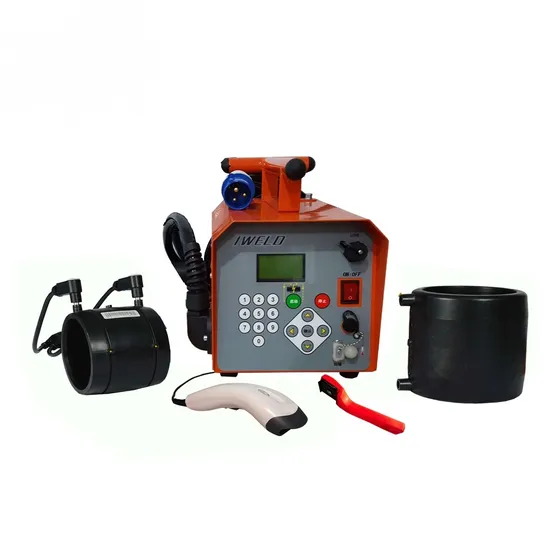

ZDRJ Series
ZDRJ is a Multipurpose Electrofusion Machine (in low voltage 8¸48V) capable of fusing any brand of coupler available in the market, up to 400mm for version400 and up to 800mm for version.
Machine automatically sets correct fusion parameters by Optical Pen reading or manual introduction of Bar Code visible on the couplers (according to ISO13950 ). In case couplers do not show bar code, it is possible to manually introduce Tension and Fusion Time recommended by manufacturer.
ZDRJ has an internal memory for storage of fusion parameters (parameters used, couplers features, etc… ). It is also possible to print out Fusion Data and download them to a PC.

SPECIFICATION
Model	ZDRJ200	ZDRJ315	ZDRJ400	ZDRJ630	ZDRJ800
Working range	20-200mm	20-315mm	20-400mm	20-630mm	20-800mm
Material	PE/PP/PPR	PE/PP/PPR	PE/PP/PPR	PE/PP/PPR	PE/PP/PPR
Dimensions	358*285*302	358*285*302	358*285*302	368*290*310	370*300*320
Machine weights	20kg	21kg	23KG	25KG	28KG
Rated power	220VAC 50/60Hz	220VAC 50/60Hz	220VAC 50/60Hz	220VAC 50/60Hz	220VAC 50/60Hz
Working temperature	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC
Output voltage	8-44V	8-44V	8-44V	8-48V	8-48V
Max. Output current	80A	80A	80A	100A	120A
Protection degree	IP54	IP54	IP54	IP54	IP54
Connectors	4.7/4.0	4.7/4.0	4.7/4.0	4.7/4.0	4.7/4.0
Memory	4000	4000	4000	4000	4000

Electrofusion Machine Standard composition 1. machine body2. scanner3. manual scraper4. transport case5. 4.7*4.0 connectors6. USBOn request: printe Application Application
electrofuison Pipe Connect
1.Suitable for connecting HDPE, PP and PVDF pipes in construction sites and trench, as well as in the workshop.
2.Sturdy, durable and reliable machine that can be operated in any complex environment and under other difficult conditions.
3.Automatically sets correct fusion parameters by Optical Pen reading or manual introduction of Bar Code visible on the couplers (according to ISO13950 ). Related Products

Related Products

Butt Fusion Fittings

HDPE Pipes

Electrofusion Fittings

Certifications
We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
FAQ

(1) Are you trading company or manufacturer?

We are a share industry and trade integrated company, CHUANGRONG is in charge of import and export of our own 5 factories, and we also sell some associated products.

(2)Where is your company?

CHUANGRONG is located at Chengdu which is the hometown of pandas. Our factories are headquartered in Deyang, Sichuan, China.

(3)Can I visit your factory?

Sure, If you want to have a visit to our factory, please contact us to make an appointment.

(4)What are the technical indicators of your products?

The technical indicators of our products include appearance, Elongation at break, Oxidation induction time, Hydrostatic strength testing. The above indicators will be tested by WRAS, SGS or a third party designated by the customer.

(5)What certifications do you have?

Our company has acquired IS09001 quality management system certification, CE, SGS, WRAS Product Certification.

(6)Can I get samples before order?

Yes, usually we can provide the samples of pipe & fitting for free, but you need to cover the freight cost.

(7)What is your complaint hotline and email address?

If you have any dissatisfaction, please call Tel: +86 28 84319855, or send your question to our E-mail We will contact you within 24 hours, thank you very much for your tolerance and trust.

Company Profile
CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.
CHUANGRONG's mission is providing different customers with perfect one-stop solution for plastic pipe system. It can supply professionally designed, customized service for your project.
CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China.
Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.
CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555, DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.
CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 60 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

---
