Sand Cement Mixer Machine From China

Product Description

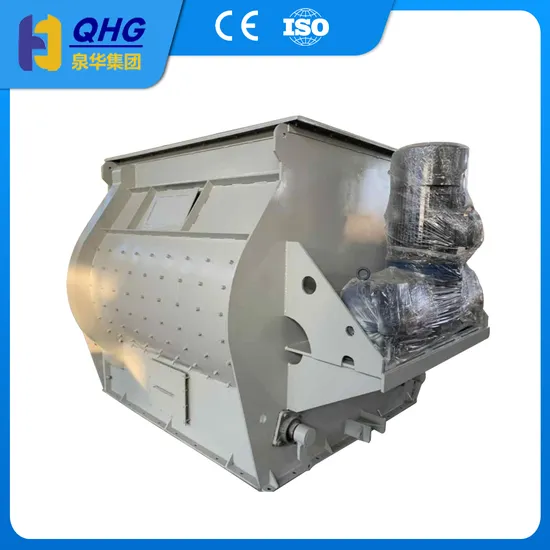

5-50T/H WZ No Gravity Mixer Machine for Mixing Cement/Sand/Dry Mortar
Working Principle for No Gravity Mixer:
Double shaft paddle mixer is a batch mixer with two counter-rotating shaft that are equipped with ten paddles, they overlap each other following the driven unit, Blades generate centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant no-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed in the end.
Working Characteristic for No Gravity Mixer Machine:
Widely Usage for No Gravity Mixer Machine:
WZ Series Double shaft mixer is widely applied in dry mortar mixer production line ,powder mixer line chemical, biological, and construction material production.It can mix powder, mortar ,granule, and fiber with evenly and efficiently .
Technical Parameter for No Gravity Mixer Machine:

specification	WZL-0.3	WZL-0.5	WZL-1	WZL-2	WZL-3	WZL-4	WZL-6	WZL-10	WZL-15	WZL-20
working capacity(m3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12
working capacity(kg)	200	300	600	1200	1800	2500	3600	6000	9000	12000
speed(RPM)	60	60	53	43	43	35	35	29	22	18
power(KW)	5.5	7.5	11	22	30	37	44	60	90	150
weight	650	900	1300	2300	2800	3400	5000	6000	8500	12000
length	1600	1800	2400	2800	3200	3400	3700	4000	4600	5200
width	850	1000	1400	1700	1950	2000	2200	2600	3100	3500
height	950	1100	1800	1950	2000	2000	2300	2600	2800	3000

Quality Guarantee for No Gravity Mixer Machine :
Our no gravity double shaft mixer machine could use 5-7 years unless the easier wear parts .So pls don't hesitate to contact us if you have any requirement .Then we will suggest you with the best model of mixer machine according to the usage .
For more details,pls don't heistate to contact us asap!

---
