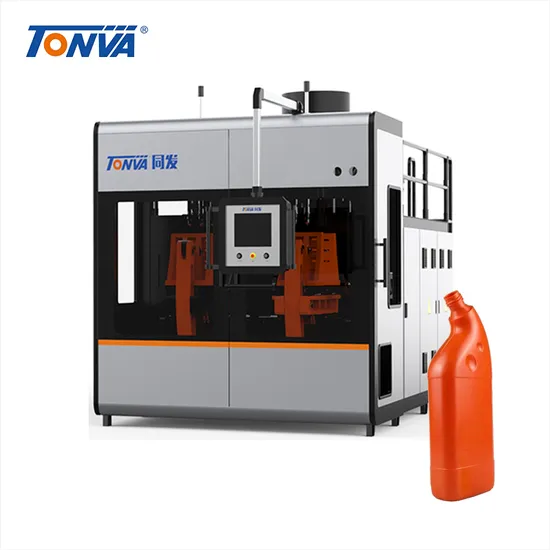

Bathroom Cleaner and Toilet Bowl Cleaner Plastic Bottle Extrusion Blow Molding Machine

Product Description

Machine Description

Type: Extrusion Blow Molding Machine	Application: jar etc
Model: TVHD-2L	Material: PE,PP etc
No. of station: 2	No. of cavity: 1
Performance Characteristics: 1.It is suitable for the production of plastic hollow products of PE, PP,EVOH,AD and other materials; 2.PLC+HMI,Chinese / English and other language operation interface; 3.According to the characteristics of different plastics, different screw and die mandrel and runner style can be designed; 4.The double proportional valve controls the flow rate and pressure of the oil passage, the reversing valve controls the flow direction, and the brake of the deceleration valve is smooth and quick; 5.The toggle-type clamping structure is designed by the front and back colleagues of the template center to ensure the uniformity of the clamping force; 6.Automatic lubrication system, automatic alarm function, pay more attention to user experience. 7.Center feeding extrusion,no blind angle,fast color and material changing 8. Multiple layers co-extrusion is optional and special shaped flow runner inside the die head gets uniform thickness of each layer and thickness of EVOH layer can be controlled within 0.03mm
Optional function: - Automatic MOOG 100point parison control - Hybrid system,give fast responding,saving energy - Servo system,to save electricity - View stripe line,easy knows the liquid volume inside - Liftable extrusion platform for easy adjustment of the length of the blank;

Product Application: Suitable for kinds of plastic bottles and other large amount of hollow plastic products
Please feel free to contact us for more specification of machines!
Our Company
Welcome to TONVA Plastics Machine Co.(Taizhou City),ltd:
Maain Business
1) TONVA Extrusion blow molding machine, 3ml-5000L hollow plastic products
2) YAOVA PET bottle blowing machine, fully or semi automatic, 10ml-30L plastic products
3) Blowing mould & Injection mould
Company
1) Set up in 1993
2) Run business home and abroad
3) Own machine workplace and mould plant
4) Provide turn-keys system
5) Approx 200 employees
Core Values
1) Competitive and experienced
2) Focus on specific needs of customer
3) Global after sales service
4) Brand new and efficient machinery
5) Deep knowledge of blow moulding process
Our Service
Pre-Sales Service
* Inquiry and consult support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Provide training how to instal and use the machine.
* Engineers available to adjust machine overseas.
FAQ
Q:How long is the guarantee time of your equipment?
A:We offer ONE year guarantee time free of charge, and all life after sales service.Constant back-up support is our best service tool.
Q:How can I install my machine when it arrives?
A:we could send our engineers to your country, they are all experienced in machine and working abroad,for testing and teaching your technicians how to run the machines.
Q:Do you offer after sales service?
A:yes ,we do offer.we could offer online instruction,which means we could tell you what caused to your machine's unsatisfied performance when you show us how your machines runs through online video, and our engineers will figure it out together with you.
Q:How many people in your QC department?
A:There are 2 general QC staff who are in charge of Ex-work inspection, they will according to the steps to ensure thestable operation of the machine and the quality of each parts.
