V Shape Powder Mixing Machine for Efficient Blending

Product Description

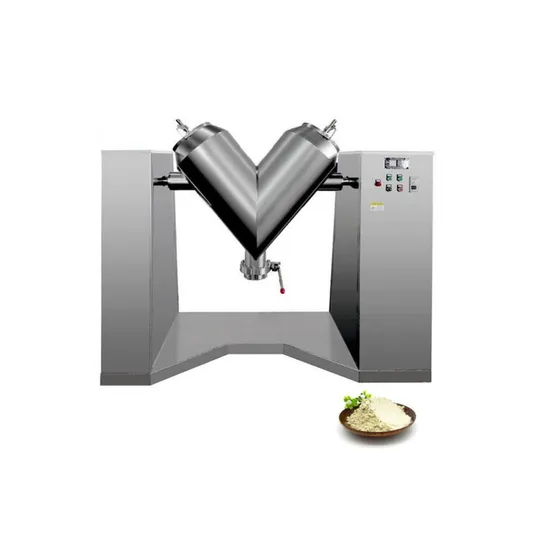

Product Description V type mixer
V type mixer is high efficiency asymmetric mixer, it is ideal equipment to mixer powder and granule material. Can be widely used in Chemical, Food, Pharmaceutical, Fodder, Ceramic, Metallurgy.
Machine at one end equipped with motor and gear reducer, motor transfer to gear reducer by belt, reducer then transfer to V type mixing drum by coupling, making V drum continuous rotate, drive the material inside of the V type drum mixing up, down, left and right.

Product Parameters

Model	Total volume(L)	Material capacity(L)	Working capacity(kg)	Rotating speed(rpm)	Power(kw)	Weight(kg)
V-1	1000	500	300	15	3	1800
V-5	5000	2500	1500	8	7.5	3880
V-8	8000	4000	2400	6	15	5200
V-10	10000	5000	3000	6	18.5	6000
