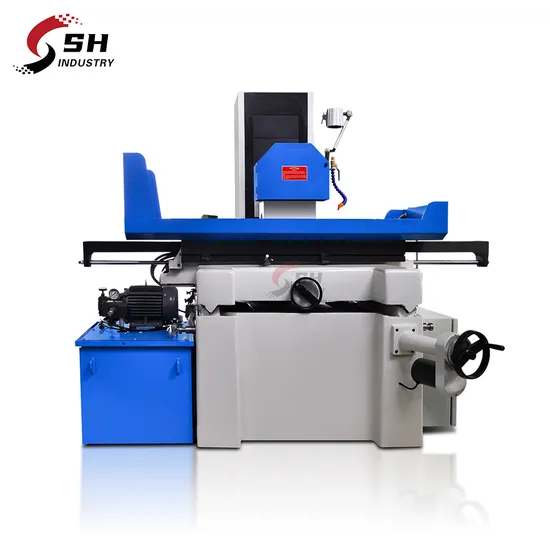

Hydraulic Surface Grinding Machine My4080 Good Price Precision Hydraulic Surface Grinding Machine

Product Description

Hydraulic Surface Grinding Machine MY4080 Good Price Precision Hydraulic Surface Grinding Machine
Product Description
Longitudinal movement is controlled by hydraulic system\
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor

Model					MY4080
Working table	Table Size (L× W)			mm	800*400
	Max movement of working table(L× W)			mm	900*480
	T-Slot(number×width)			mm	3×14
Grinding wheel	Max distance from spindle center to table surface			mm	600
	Wheel Size(Outer diameter×width×Inner diameter)			mm	φ355×40×Φ127
	Wheel speed	50HZ		r/min	1450
		60HZ			1680
Feed amount	Longitudinal speed of working table			m/min	3-25
	Cross feed(front and rear) on handwheel		Continuously(Variable Transmission)	mm/min	600
			Intermittently(Variable Transmission)	mm/times	0-8
			Per revolution	mm	5.0
			Per graduation	mm	0.02
	Vertical(up and down) feed on handwheel		Per revolution	mm	0.8(1.0)
			Per graduation	mm	0.01
	Speed of vertical feed			mm/min	500
Motor power	Spindle motor			Kw*p	4*4
	Coolant pump motor			W	125
	Lifting motor			W	180
	Hydraulic motor			kw	2.2*6
Working precision	The parallelism of working surface to base level			mm	300:0.005
	Surface roughness			μm	Ra0.4
Weight	Net			kg	2800
					3200
	Gross
Overall dimension(L×W×H)				mm	2550*2000*2100

Standard accessories

Name	Quantity	Name	Quantity
Tool box	1	Balancing shaft	1
Socket wrench	1	Wheel dresser	1
Cross screwdriver	1	Diamond pen	1
Open-end wrench 12 x 14	1	Wheel and wheel chuck	1
Open-end wrench 17 x 19	1	drainage snake tube	1
Open-end wrench 22× 24	1	flushing bag wire tube	1
Inner hexagon spanner 3	1	Machine stand pad	5
Inner hexagon spanner 4	1	foot-screw	5
Inner hexagon spanner 5	1	Water tank	1
Inner hexagon spanner 6	1	Electromagnetic chuck(400*800mm)	1
Inner hexagon spanner 8	1	Balancing stand	1
Inner hexagon spanner 10	1	Work lamp	1
Inner hexagon spanner 12	1

Detailed Photos

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
