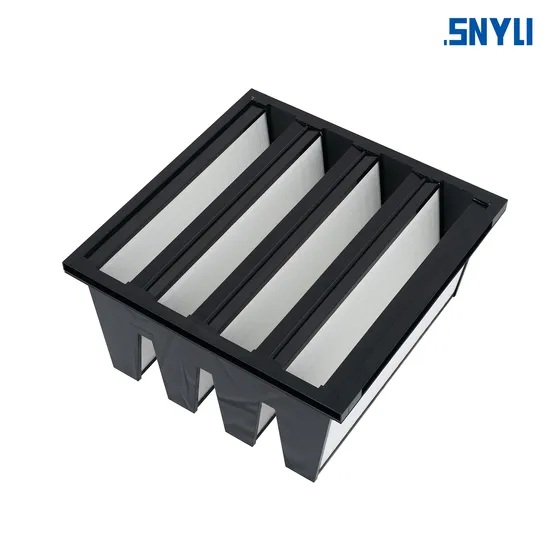

M6 F7 F8 F9 Medium Efficiency Glass Fiber Mini Pleat V-Bank Filter for Dust Collector

Product Description

Medium Efficiency Glass Fiber Mini Pleat V-Bank Filter For Dust CollectorV-Bank Medium Filters stand as a steadfast solution in the pursuit of pristine air quality. tailored to meet diverse needs across industries. The fine fiberglass media pleated to some media packs, then several media packs and frame form a "V shape filter. The number of the "V" shape deter-mines the filter's media area so that it influence on filter service life and pressure drop.FeaturesLow pressure drop and high efficiencyExtended surface design ensures low resistance to airflow and reduce energy cost.High velocities, variable air volumes high moistureLight weightCompact structureV-Shape design have more media areaHigh airflow and efficiencySpace saving design conceptV Bank Medium Filters are used for high airflow air-condition system
COMMON DIMENSIONS

Nominal Size WxHxD (in.)	Actual SizeWxHxD (mm)	Filter Rating (EN779:2012)	Air Flow (m³/h)	Intial P.D(Pa)	Rec Final P.D(Pa)
24×24x 12	610×610×292×4v	M6	3400	70	350
24×24× 12	610×610×292×5v		3400	70
24×24× 12	610×610×292×6v		3400	60
12×24× 12	305×610×292×3v		1700	60
24×24× 12	610×610×292×4v	F7	3400	90
24×24× 12	610×610×292×5v		3400	85
24×24× 12	610×610×292×6v		3400	80
12×24× 12	305×610×292×3v		1700	80
24×24× 12	610×610×292×4v	F8	3400	100
24×24× 12	610×610×292×5v		3400	95
24×24× 12	610×610×292×6v		3400	90
12×24× 12	305×610×292×3v		1700	90
★ Optional M5,M6,F7,F8,F9 efficiency.Available with M5,M6, F7, F8 ,F9 efficiency.

ADVANCED TESTING MACHINE
We have advanced HEPA filter testing machine to test the efficiency rate,pressure drop and non leakaging. We garrantee the products we shipped out were all good quality product.
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
