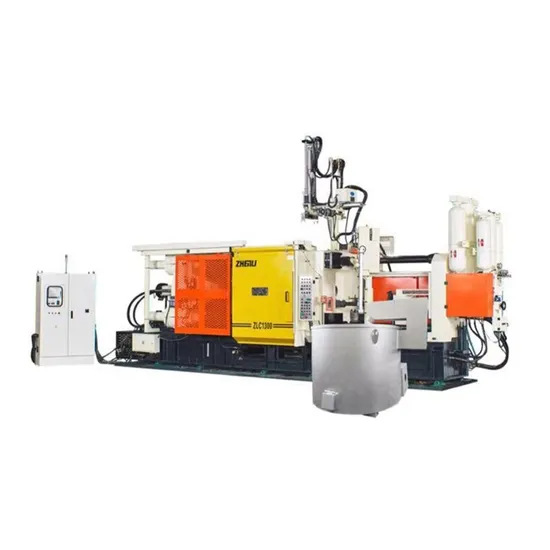

Zhenli 1300t Cold Chamber Metal Die Casting Machine Price

Product Description

Jiangmen Zhenli Machinery Co., Ltd.
Located in Jiangsha Industrial District of Jiangmen City, China's famous motorcycle production base, Jiangmen Zhenli Machinery Co.,Ltd is a high-tech company specializing in R&D, design, production, and after-sale services. Since its foundation in 2002,after a decade's development and dedication, Zhenli has developed into a modern factory with imported CNC machining center, gantry milling, planer, grinder,and other advanced equipment. The main products of Zhenli include "ZL"series of hot chamber die casting machines, "ZLC"series of cold chamber die casting machines, servo die casting machines, real-time control die casting machines, magnesium alloy die casting machines, and peripherals,etc.
] Clamping: durable and efficient clamping mechanism
1.The hinge clamping mechanism of the double toggle machine, the high-strength ductile iron template is equipped with CNC precision processing, which is strong and durable.
2.High tensile alloy steel guide post, durable and reliable.
3.High-precision electronic ruler position detection, precise control of the clamping stroke.
4.The mechanical toggle lubricates automatically to improve wear resistance.
5.The hydraulic gear adjustment mechanism is stable.
6.Independently adjustable mold opening and pressure preparation system (need to purchase and customize).
The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection
response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.

Description for Electric & Hydraulic components
1.Siemens 200 control system with LED monitor(Germany).
2.Imported components are used for hydraulic units including YuKen (Japan), Rexroth(Germany) and Vickers (USA) to ensure the stability of hydraulic system.
3.Hydraulic Pump is from Vickers (USA).
4.Sealing members are from Trelleborg(Sweden) and Fluorten (Italy).
5. Posts and columns are purchased from General Taiwan .
6.Electric parts are purchased from France Schneider. Standard Configuration :

Double-toggle lock mould structure, high strength spheroidal graphite iron casting plate.

Low pressure mold closing protection.

Mould adjustment device for gear train oil motor.

Concentrated automatic lubrication system.

Fast hydraulic ejector device and core pulling device.

4th level injection control system.

Independent piston 2-speed and pressure charging energy accumulator.

Hydraulic elevator sprue platform.

E-ruler control on mould opening and closing

Power saving high and low pressure twin pump hydraulic system.

Product Parameters

	ITEMS	UNIT	ZLC-1300
Clamping Unit	Locking Force	kN	13000
	Die Open Stroke	mm	1000
	Ejector Force	kN	580
	Ejector Stroke	mm	200
	Die Height (Min-Max)	mm	450-1200
	Die Platen Size (HXV)	mm	1740x1740
	Space Between Tie Bars	mm	1100x1100
Injection Unit	Shot Position	mm	0,-160,-320
	Shot Strock	mm	880
	Casting Force (intensify)	kN	1080
	Plunger Diameter	mm	100-140
	AI) Injection Weight	kg	13,22.5
	Casting Pressure	MPa	138-70
	Casting Area	cm2	910-1785
	40MPa) Casting Area Max	cm2	3250
	Chamber Flange Diameter	mm	240
	Chamber Flange Protrusion	mm	25
	Plunger Penetration	mm	325
Others	Main Pump Driving Motor	kW	74
	Working Pressure	MPa	16
	Oil Tank Capacity	L	2350
	Machine Dimensions	mm	11000x3500x4350
	Machine Weight	T	90

FAQ
Q:Are you a manufacturer of a trade company?
A:We are a manufacturer and nd we have our own Export rights.

Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?
A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .

Q:How is your delivery time?
A:Generally ,we can dilivery the machine within 15-30 days after receiving your advance payment.
But it also depends on the iterm and the quantity of your order.

Q:How about the payment terms?
A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.

Q:How about your warranty and after-sales services?
A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
If any question and problems pls tell us with no hesitate.

---
