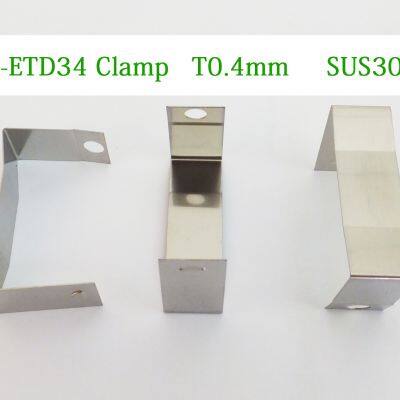

FK-ETD34 clip, ETD34 clamp, stainless steel material, quality assurance, fast delivery.
Product size: 36*22.6*10mm;
Corresponding core size: 34*34*12mm;
Material: SUS301 stainless steel;
Thickness: 0.4mm
FK-ETD34 clamp, ETD34 transformer clamp, interlocking style, made of SUS301 stainless steel, with good elasticity, easy assembly of the product, and stable fastening force.
Characteristic: ETD29ETD34ETD39ETD44ETD54 clamp is made of SUS301 stainless steel. The material has the characteristics of elasticity, stability, durability and corrosion resistance. It is suitable for transformer magnetic core clamping. ETD34 interlocking steel clamp has simple assembly, strong clamping force, fixed magnetic core inductance, and core transformer with FK-ETD34 steel clamp has low drying noise. Point, suitable for high-end transformer products and export products.
Commonly used materials for transformer clamps:
A) Stainless steel (SUS301) B) SK7 C, phosphorus copper (C5191) copper (C1100)
Common classification of transformer clamps:
RM Series (RM4, 5, 6, 7, 8, RM10, 12, 14)
ER Series (ER9.5, 11.5, 13.6, 14.5)
EF Series (EF20, 12.6, 16, 19, 25, 30)
EPC Series (EPC10, EPC13, EPC17, EPC19, EPC25, EPC30)
EE Series (EE5.0, EE5-1, EE5-2, EE5-3, EE5-4)
UU Series (UUU9.8, UUU10.5 with ears, 15.7, 16, 25)
EFD series (EFD10-1 half package, EFD12 square cover, EFD15, EFD15-1, EFD20, ETD20-1, EFD25, 30)
EFD double-button (EFD15 double-button, EFD20 double-button, EFD25 double-button, EFD30 double-button)
ETD Series (ETD29, 34, 39, 44, ETD49, 54, 59)
EP Series (EP7 Button, EP7-1, EP13, EP17, EP20)
PQ series (PQ2020, PQ4040, PQ5050, PQ34)
FK series (FK-ETD29,FK-ETD34, FK-ETD39, FK-ETD44, FK-ETD49, FK-ETD54)
Dongguan Licheng Hardware and Electronics Co., Ltd. was founded in 2010, the company is located in the beautiful Dongjiang River, with the name of China's famous electronic town - Shijie Town, Dongguan City.
The company specializes in the production of metal stamping parts, electrical hardware spare parts, transformer clamps, electronic connector terminals, precision die manufacturing and other main business. Its products are widely used in modern communication equipment, digital technology, electronic transformers and household appliances. The company has first-class quality concept, super-strong mold research and development team, efficient and sophisticated equipment and production team, closely following the forefront of electronic and electrical development.
>>
