Durable Polyvinyl Chloride Pipes for Reliable Farm Watering Solutions

Product Description

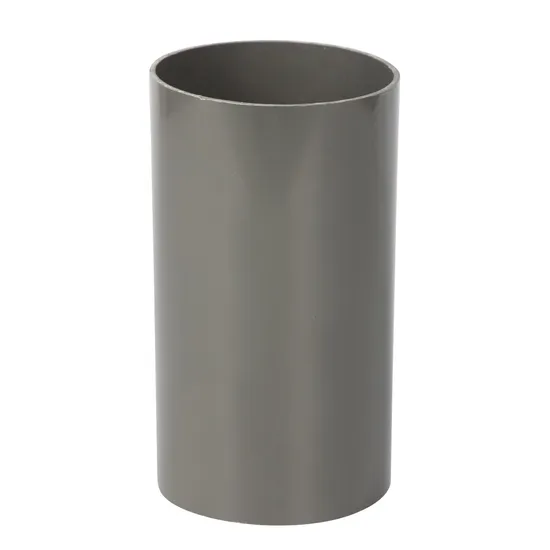

Product DescriptionPVC-U farmland irrigation pipe is another broad field of PVC application. Our country is a country with water shortage. At present, most of the farmland in our country is irrigated by soil canals, and the waste of water sources is very serious. And due to water shortage, a large number of cultivated land cannot be well irrigated, and crop yields are low. The use of PVC-U agricultural irrigation pipes for irrigation can save about 50% of water, and can improve yield. Equipment is resistant to corrosion, and does not destroy nutrients in fertilizers to ensure the growth needs of crops. PVC-U farmland irrigation pipes have low cost, smooth inner walls, low fluid resistance, no rust, and are not strict on water quality. They do not accumulate stains and are not easy to clog. They can last up to 50 years. PVC-U farmland irrigation pipes have stable performance, good hygiene, and do not affect water quality, which will not affect the non-toxic and pollution-free crops.Product Parameters

item	parameters
temperature	-30ºC-+60ºC
Pressure resistance performance	0.1MPa-4.0MPa
service life	≥50years

product performance1. Good mechanical properties. PVC agricultural irrigation pipes are rigid and have high resistance to external forces. Buried water transportation is not easily damaged by external forces.
2. The inner wall of PVC agricultural irrigation pipe is smooth, the fluid resistance is small, and it does not rust. The requirements for water quality are not strict, and it is not easy to clog.
3. PVC-U pipes have a small coefficient of linear expansion, and the pipes will not produce significant deformation when the ambient temperature changes significantly, which will affect the irrigation effect.
4. PVC agricultural irrigation pipes have good corrosion resistance and stable performance. They not only do not corrode when transporting the water injected into the fertilizer, but also do not destroy the nutrients in the fertilizer, ensuring the growth needs of crops.
5. The addition of mineral elements makes water mineralized. For example, manganese is an activator of amylase, which can promote starch decomposition, enable seeds to germinate and grow, increase the organic matter and mineral content of crops, and play a health role for eaters.
6. Adding nano-elements to the pipe can purify, mineralize, nourish and sterilize the transported water. Soak seeds and raise seedlings in this water to improve the germination rate of seeds. The seedlings are strong, the seedlings are high, and the slow seedling period is short. And it can effectively inhibit the number of E. coli in 1000, ensuring the safety of agricultural products.
7. Antioxidants and light stabilizers are added to the formulation of PVC agricultural irrigation pipes, so that the pipes have excellent anti-aging properties, and long-term light or burial can ensure their performance.
8. The trace elements in PVC agricultural irrigation pipes can not only improve the growth of crops, but also improve the soil condition and lay the foundation for future planting.
9. Pipes and fittings are fully equipped and dimensionally stable, avoiding installation inconvenience or water seepage caused by large fit tolerances.
10. The pipe material has stable performance, good hygiene performance, does not affect water quality, and will not affect the non-toxic and pollution-free crops as a result.
11. The connection method of PVC-U pipes and fittings for irrigation is simple, mainly including bonding and threaded connections, of which bonding is more commonly used. If bonding is appropriate, the connection of PVC-U pipes is stronger than that of the pipe body.
12. Lightweight, easy to transport, install and use.
Installation Instructions Solvent bonding connection method:
Wipe the inner wall of the pipe fitting socket and both ends of the straight pipe clean, so that there is no moisture or oil stains. Measure the length of the straight pipe that should be inserted into the pipe fitting socket, and mark the mark on the straight pipe.
Put the installation tool (referring to D110 or above), such as the wire tightening machine, into the straight pipe, prepare it, and then apply a thin adhesive evenly on the inner wall of the pipe socket and the insertion part of the straight pipe. Insert the straight pipe into the pipe socket immediately, and insert the straight pipe into the marked position with the wire tightening machine for 15 minutes.
Flared socket connection method:
Clean up the inner wall of the flared tube and the outer wall of the straight tube insertion part. Measure the length of the flared part and mark it on the inserted straight tube (the length mark should be appropriately shorter than the measured length). Rotate the rubber ring and place it in the groove of the flared end (the sloped end of the rubber ring is outward). The inserted straight tube end should be chamfered at 15 ° to facilitate smooth insertion. Align the straight tube insertion end with the flared end and insert it, and insert the straight tube into the marking line with a wire tightening machine. FAQ1,What's your minimum order quantity?
Our minimum order quantity is usually 1 CTN.
2,How long is the delivery cycle?
The delivery time is approximately 15 - 20 days. (If the quantity is less than 10 cartons, it will take about 3 - 5 days.)
3,Where is the port of shipment?
We ship the goods via Tianjin Port.
4,What are your payment terms?
We accept 30% telegraphic transfer as advance payment, 70% payment during the shipment period or 100% letter of credit.
5,How can I contact you?
You can contact us through the trade manager or click on "Contact Supplier" at the bottom to send us an email.
6,Where is your company located?
Our company is located in Cangzhou, Hebei Province, China. You are very welcome to visit us if you'd like.
7,How about the samples?
We can send samples to you. Most samples can be sent to most parts of China for free. If they are sent to other countries, the transportation cost should be borne by your side.
8,Why choose us?
Our products are genuine, of high quality and with competitive prices.
We have cooperated with customers all over the world and have a good understanding of the market.
You will be very satisfied with our after-sales service.
Any questions and feedback will be replied to within a very short time.

---
