Double-Layer Graphite Cooling Sheet Rotary Die Cutting Machine

Product Description

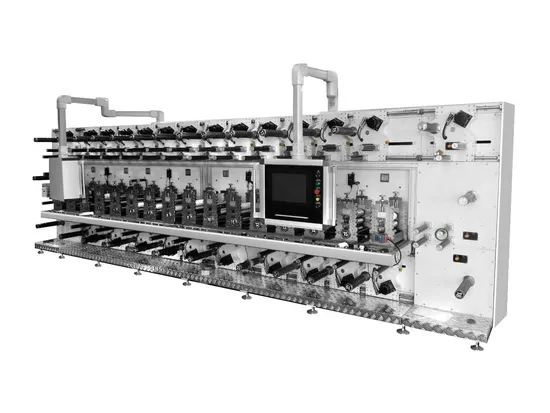

DCR-1224S Twelve-station Rotary Die Cutting Machine
Application
DCR-1224S is suitable for multi-station set position die cutting, laminating. This machine is applicable for adhesive tape, protection film, foam, mesh cloth, aluminum and copper foil, back light module, flexible circuit board, medicine and hygiene field, etc.
Feature The main operation interface adopts touch panel, with picture display for easy operation. Keyboard, mouse and hand touch are all available. It can save more than 500 kinds of SOP data, improve standard level, and reduce dependence on operator's experience and reduce more than 60% material waste. All unwind & rewind shafts are driven separately by servo motors. The unwinding, rewinding, straight & reverse rotation are more flexible and controlled by high sensitivity tension sensor shaft's feedback to ensure smooth running. All cutter holder's movements are controlled by servo motor with enough torsion, stable acceleration and deceleration, precision can be ±0.075mm. The control system is operated by Japan Omron PLC and logic movement controller with better synchronism. Machine has the function of asynchronous laminating which can save material. Movable auxiliary unwind shaft. Main unwind EPC system can stabilize the material feeding into blade holder. Fracturing detecting (including transparent material) machine stop or alarming to reduce material waste. CCD testing system can test position precision all the time during the whole process and then feedback to PLC which send orders to servo motors to adjust position. Color code electric eye tracking system can meet the demand of position precision of produce printing product. Machine can process two different types of materials at the same time which improve capacity utilization.
Features
Stable speed acceleration and deceleration. Unchangeable position precision. Fine tuning of CCD camera testing ensures die cutting precision. Function of stopping machine when material is broken. Color code electric eye tracking function. It can process two different types of materials at the same. Flexible and convenient operation with keyboard, mouse and hand touch.
Main Technical Parameters

Model	DCR-1224S
Material shape	Roll
Working stations QTY.	12
Rewind & unwind shafts QTY.	24
Working speed	Max. 50m/min
Material width	250/350/450mm
Material O.D.	Max. 450mm
Blade teeth QTY.	65-120
Interval between blade teeth	1/8"
Tension Control	Automatic
Web Guide Control	Automatic
HMI	15"
Asynchronous laminating	YES
Process two products	YES
Color photoelectric tracking system	Optional
CCD (Charge-coupled Device)	Optional
Die cutting precision	±0.05mm
Auto set position precision	±0.05mm

---
