Machinery Construction Hydraulic Grabber for 9ton 10t 12t 15t 16t Excavator

Product Description

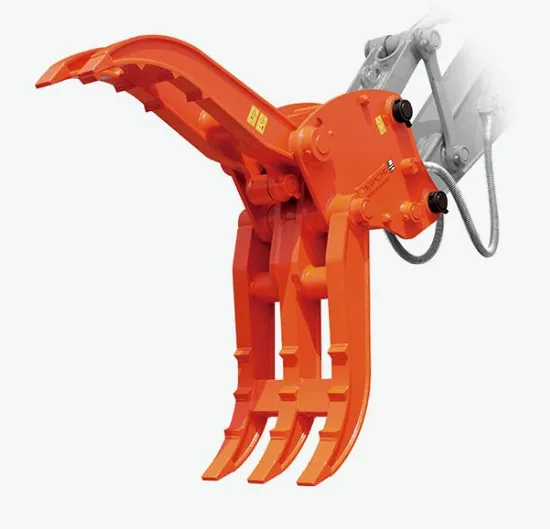

Hydraulic Japan Grapple for Stone/Steel/Scrap
HOMIE hydraulic rock grapples are designed for loading and unloading stone,rock,steel and scrap materials,mounted on excavators with hydraulic systems. They are available with open or closed shells/tines depending on the job and the type of material to be handled. Manufactured of high quality Q355Mn steel, all bearings are heavy-duty and sealed for high performance.
Features:
* EATON quality motor

* Winner brand safety valve


*Structure: 3+2 ,4+3 and 5+4

*Easy operation by handle
*12 months warranty
Please contact our customer service staff to recommend the suitable grab model.

Category	Unit	HM04	HM06	HM08	HM10
Weight	kg	565	920	1940	1980
Max Jaw Opening	mm	1336	1623	2115	2115
Oil Pressure	Kg/cm2	120-160	150-170	160-180	160-180
Setup Pressure	Kg/cm2	180	190	200	210
Operating Flux	L/Min	50-100	90-110	100-140	130-170
Suitable Excavator	Ton	5-8	9-16	17-25	26-35

Wood grapple for 10ton 12ton 15ton excavators 4+3 Fingers rock grapple for 25ton 30ton excavators

---
