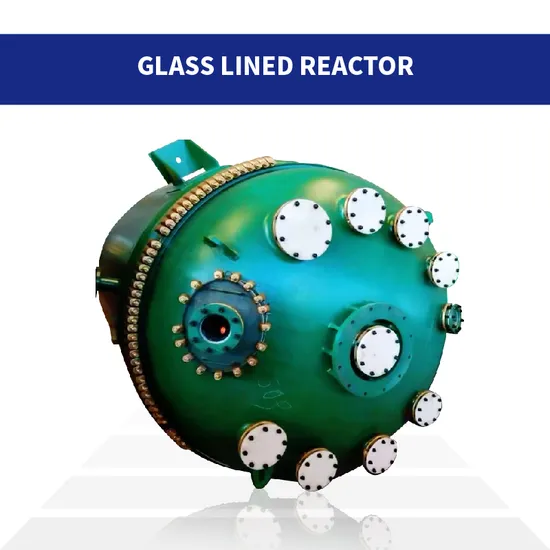

Glass Lined/ Enamel /Stainless Steel (SS) / PTFE Lined Mechanical Packing Sealed Reaction Kettel Tank Vessel Reactor Fk 8000-16000

Product Description

Category: Glass lined reactor
Product specification: 8000L-16000L
Product standard: GB25025-2010, GB/T 150-2011
Product use: This glass-lined reactor is mainly used for large-scale chemical and pharmaceutical experiments. This kind of glass-lined reactor is also suitable for precision conditions of medium large-scale production such as chemical industry and pharmaceutical industry. As a hydrolysis, neutralization, crystallization, mixing, emulsification equipment, widely used in chemical, petroleum, medicine, pesticides, food, dyes and other industries.

Series		FK Series
Basic Model		FK200		FK220		FK240
Normalt Volume (L)		8000	10000	10000	12500	12500	16000
Actual Volume (L)		9060	12600	12830	15180	15817	18920
(Mpa)	Body	0.4	0.4	0.4	0.4	0.4	0.4
	Jacket	0.6	0.6	0.6	0.6	0.6	0.6
Area of h.exch (m²)		17.7	21.4	21.2	25.4	24.13	32.74
Type of Agitator		Impeller
Agitator(r/min)		130	130	130	130	130	130
Type of Shaft Seal		212-130	212-130	212-130	212-130	212-130	212-130
Reducer(kw)		11	11	15	15	18.5	18.5
D1(mm)		2000	2000	2200	2200	2400	2400
D2(mm)		2150	2150	2400	2400	2600	2600
H1(mm)		630	630	680	680	740	740
H2(mm)		2790	3400	3070	3690	3140	4280
H3(mm)		2170	2170	2210	2210	2304	2304
H4(mm)		800	800	900	900	900	900
H5(mm)		220	220	220	220	325	325
B(mm)		2407	2407	2708	2708	2868	2868
H(mm)		5826	6436	6170	6790	6394	7534
d(mm)		1100	1100	1200	1200	1200	1200
(mm) Centre Cirde of Vent		1500	1500	1600	1600	1700	1700
Discharge Valve		DN150/100	DN150/100	DN150/100	DN150/100	DN150/100	DN150/100
(kg) Total Weight		6610	7780	10450	11780	11465	14035
Tyne of Supportin		Lug Support

Series	Shafthole	Man Hole	Thermometer Hole		Lens Hole	Spare Hole					Discharge Hole	Water,Gas Inlet Out Nozzle		Lug Support
														Bolt	Center Circle
	G	M	T	T2	S1-2	N1	N2	N3	N4	N5	B	P1	L1-3
FK200	200	300×400	200		125	125	150	125	150	125	150	65	65	4-φ30	2407
FK220	200	300×400	200	200	125	150	150	150	150	125	150	80	80	4-φ36	2708
FK240	200	450	200	200	125	150	150	150	150	125	150	80	80	4-φ36	2868

---
