CNC Press Brake Tooling Rollbend Mark-Free Bending Tools Amada, LVD-HD, Trubend Machine Tool Chassis Cabinet Used for Stainless Steel Plates Sheet Metal Forming

Product Description

Product Description

Material	42CrMo
Hardness	45-50HRC
Option	Black-antirust
Standard	Segmented, Arc, International Standard, Three Point, Non-Streaking, Adjustable Groove, Special, etc
Available Bending Machines Model	AMADA RG100, TRUMP-TruBend 5000, LVD-HD, FINN-POWER, KOMATS, STRIPPIT, GASPARINI, TOKYO, ACCURPRESS, YANGLI MB8-100X, YAWEI PBR-100, JFY PR6C
Press brake Forming tooling	Closed Louver tool, Opened Louver tool, Emboss tool, Bridge tool, LOGO tool, Knockout tool, No indentation tool, RIB tool, Hinge forming tool, Joggle tool, To flatten tool, R Bending, Z-Bent tool, Multi-V Die, Thick plate bending
Option	Coating with TICN or Tin
Delivery time	5 - 10 Days

Detailed Photos

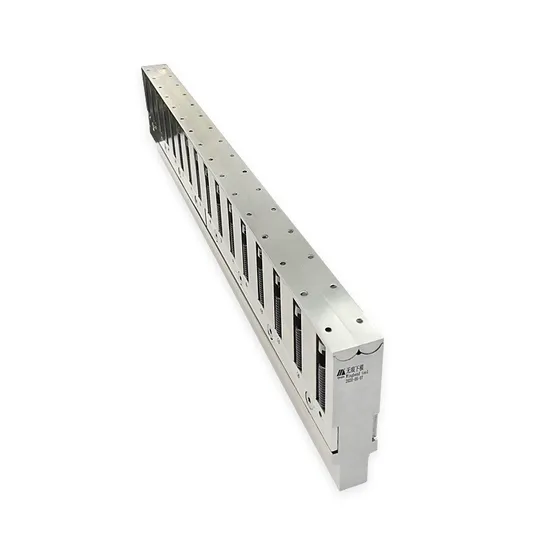

RollBend mark-free
Application
When processing visible parts, it is particularly important that no marks remain on the sheet after the bending operation. For this reason, the RollBend has been developed with a cast elastomer layer on the jaw surface. This makes it possible to bend parts completely mark-free.
Mark-free bending
Ideal for painted, coated or high-gloss surfaces
Variable material thickness
No damage to the film of laminated sheets
Steel jaws can be replaced with jaws with cast plastic
Very short flanges can be bent
Can be used in combination with bending foil
Tooling ordering
According to the different requirements of customers, choose the best mold design program, with the fastest time, the best quality to meet customer requirements. In addition, if you have difficulties in selecting a mold, please contact our company. Please provide the following:
1. Detailed shape of the general shape of the finished product and the bent portion (bending radius, inner contour size, tolerance range, etc.)
2. Material, thickness
3. Requirements for scratches (injuries)
4. Machine used for bending (machine model, maximum tonnage, table length)
5. Others, especially need to specify matters.
Upper die interface category:
CNC bending tool segmentation, regular segment specifications are as follows:
Mold section 1
CNC bending on the mold: 100 (left), 10,15,20,40,50,200,300,100 (right) = 835mm
CNC bending lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm
Mold section 2
CNC bending on the mold: 100 (left), 10,15,20,40,50,165,300,100 (right) = 800mm
Production Process:
Down → Forging → Tempering → Finishing → Quenching → Annealing → Conditioning → Coarse Grinding → Finishing → Inspection → Packaging → Factory
Ordering Information:
1. the price and pictures are for reference only, due to the particularity of the products, different specifications, different materials, different technical requirements, prices and pictures are not the same, please be sure to explain the specification materials and requirements, leave the way to contact you, We will contact you in time to give you a quote.
2. When contacting with our customer service staff, please tell us if you have purchased other products from our factory. Our company has record records for all customers so that you can easily find your original order information and save your precious time.
3. In order to provide you with the required products, please provide the product specifications, models and machine specific manufacturers, individual precision products also require you to provide your drawings, pictures or samples.
4. standard parts we can be shipped within a week, non-standard parts of the cycle, according to your workpiece is difficult to set!
5. The price and the picture are for reference only. Actually according to the needs of the pro, different prices of materials of different specifications and materials are also different; the postage is also imaginary, and large-size products generally take the logistics.
Company Profile
Dongguan Quapin Hardware Co.,Ltd.
Dongguan Quapin Hardware Co., Ltd is a joint venture, it specialize in R&D, manufacturing both domestic and abroad CNC turret punch press tooling (NCT) mould. Quapin is Dongguan one of the most large-scale CNC turret punch press tooling manufacturer.
QUAPIN is equipped with advance production equipment and inspection equipment. For example, CNC Center has CNC machining center, CNC computer lathe, sodick CNC wire-cut machine, CNC EDM machine, Professional internal grinding, Precision cylindrical grinder, Precision flat stone mill other other advanced processing equipment and optical projections, Hardness tester, Sand blasting machine, Marking machine and other high-precision testing equipment. After years of efforts, the company established scientific, high-efficiency, perfect management system as well as CAD/CAM/UG manufacturing capability.
Quapin specializes in the research, development and manufacturing of CNC turret punch press molds. We provide one-on-one free technical service, lightning delivery and intelligent stocking; try our best to help the sheet metal manufacturing enterprises to increase production efficiency and minimize the processing cost of each product.
We Qaupin products team silently in the tens of thousands of sheet metal business, elevator business, sheet metal machine tool business, the world's top 500 enterprises and other services;
Quapin products in the mold to ensure quality, quality service at the same time, we constantly innovate! Adhering to do our best to help sheet metal production enterprises to improve production efficiency, the processing cost to a minimum!
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We have 11 year experience in the production of the factory, we are Dongguan mold production base. For the customer we offer the price of competitive, professional production, adequate supply, high production efficiency, greatly expanding the interests of customers.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the tools are standard. Or it is 15-20 days if the tools is special forming shape.
Q: Do you provide samples ? is it free or extra ?
A: We do not provide samples.
Q: Do not receive the goods after payment or product delivery error how to do?
A: The customer is paid to ****** One Touch's account at the time of payment, and ****** will guarantee a full refund when you encounter both cases
Q: How is your after-sales service?
A: After the delivery of mold quality problems, replacement(except man-made damage)
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

---
