Aluminum Window Machinery Corner Crimper Machine

Product Description

Jinan SETH Intellighent Equipment Co.,Ltd.

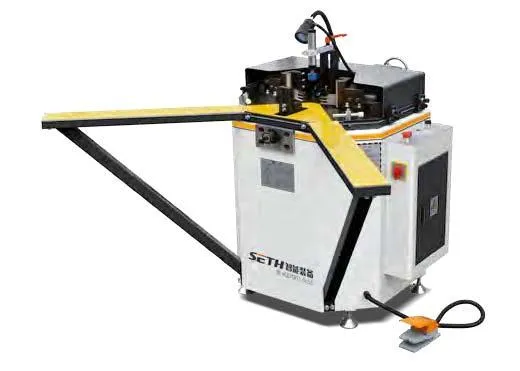

SETH-CNS-160S model heavy duty single-head Hydraulic-pressure Corner Combining Machine
1.Product Feature:
1.It is suitable for corner-code punching and riveting connection of
aluminum door and window curtain wall.
2. This machine is the latest R&D and design model of our company,
which is the first in the industry, with stable performance, high
precision and high efficiency.
3.The machine is controlled by program, hydraulic system provides
angular power, and has high punching and riveting force, fast speed
and stable operation.
4.The angle setting knife has a wide adjustment range up and down, is
easy to adjust, and adapts to the angle setting of higher and thicker
profiles.
5.The front positioning adopts lifting type, which is convenient for
taking and placing materials.
6.Double-point knife and step knife can be configured to make the
angle strength higher

2.Product details:
3. Technical Parameter:

Power supply	380V 50Hz
Total motor power	3.0Kw
Rated pressure	20MPa
Operating pressure	0.6~0.8MPa
Air consumption	5L/min
Front positioning stroke	170mm
Backward cutter stroke	120mm
Adjustment range of front positioning	140mm
Adjustment range of angle cutter	160mm
Height of machined profile	160mm
Fuel tank capacity	40L
Oil pump size	10 "
Overall dimension	870×1200×1100mm
Weight	700kg

4.Hot products
5.Our company Join hands with SETH lead to Intelligence
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
6.Package and delivery of our Aluminum uPVC window &door machines
7.Certificates
8.FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine, aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
Q.:What's your main products?
A.:CNC double-head precision cutting saw for aluminum profile, aluminium window cutting machine ,double head cutting saw for sale, 45° Double-Head Saw blade CNC Cutting Machine for Aluminum,90°aluminium window cutting machine Double-Head CNC cutting saw,Aluminium machinery of CNC,Aluminium,precision,Cutting,Saw Machine with Double Heads ,CNC heavy-duty double-head cutting saw for aluminum Alloy Window Materials with Hard Alloy Saw Blades.Double miter saw,Precision miter saw ,Window frame saw
window and door manufacturing equipment CNC Aluminum Window Door CNC Aluminum Window Door Double Head Aluminium CNC Cutting Saw Machine Window Door Making Machine CNC Aluminium Corner Connector Cutting Saw Cnc corner connector cutting saw for aluminum profile Aluminum Window Corner Connector CNC Automatic Cutting Saw milling Aluminum Precision CNC Machining Parts CNC MachineCNC Router Machine for Aluminum Copperwindow corner machine
UPVC windows and doors making machine
1. Welding Machine
2. Cutting Machine
3. Lock Machine
4. Waterhole Machine
5. Corner Machine upvc window machine window machine windows machinery upvc machine upvc profile window welding machine upvc profile cutting machine upvc window machine pvc window manufacturing machine pvc window profile cutting machine pvc window profile welding machine pvc window profile copy router machine pvc window profile end milling machine Our Advantages
Exhibition
We are looking for distributors all over the world
Join us.
Email me or what's app for more information.

---
