Automatic Screw Feed Driver Auto Feeding Screwdriver Machine for Assembly Production Line

Product Description

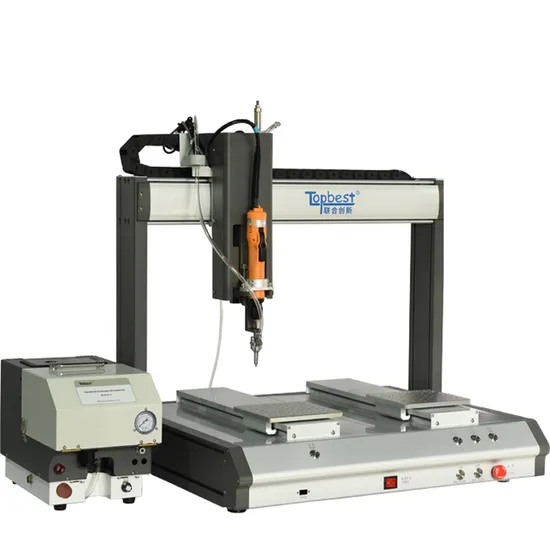

TBS-SC-6331 Desktop 4-Axis Blowing Feeding Single Head Double Rail Robotic Screw Fastening Machine
Parameters

Model		TBS-SC-6331
Feeder mode		Blowing Type
Dimension (L*W*H) (mm)		800*630*780mm
Driving mode		Closed-loop Motor+Synchronous belt
Control mode		Microcontroller + Teach Pendant
Operation Range (mm)	X Axis	X = 580mm
	Y1/Y2 Axis	Y1 = 280mm, Y2 = 280mm
	Z Axis	Z = 100mm
Maximum Speed	X/Y1/Y2 Axis	600mm/S
	Z Axis	400mm/S
Repeated precision	X/Y1/Y2 Axis	±0.02mm
	Z Axis	±0.02mm
Teaching Method		Remote Teaching / Manual Data Input
Memory		1000 files
Screwdriver brand		KILEWS / Japan HIOS / SD
Max. Load		15KG
Alarm system		Stripped alarm
Weight(kg)		76 KG
Voltage		AC 110V/220V,50Hz/60Hz
Power Source		Electricity + Pneumatic
Air pressure requirement		0.4 to 0.8MPa as dry air
Working Temperature		5-40C°
Working Humidity		20-90% RH

Features
1. Automatic screw feeding.
2. Available for M1-M4 screw.
3. Dual stations to maximize efficiency.
4. Smart screwdriver to record torque for each screw (Optional).
Condition
The screws used must meet the requirements:
(1) The total length (H) of the screw must be more than 1.2 times the diameter (D) of the screw head.
(2) Be Suitable for M1-M4 screw.
(3) The total screw length(H)<=30mm and screw cap's diameter(D)>=2mm<=8mm.
Company Profile

Functions&Advantages
Certificate Display
Customer Visit
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Nearly every day from customers and abroad come to our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

---
