CNC Gantry Surface Grinding Machine-LC Machine Special Made for Steel Plate 4-Sided Pre-Squaring Milling

Product Description

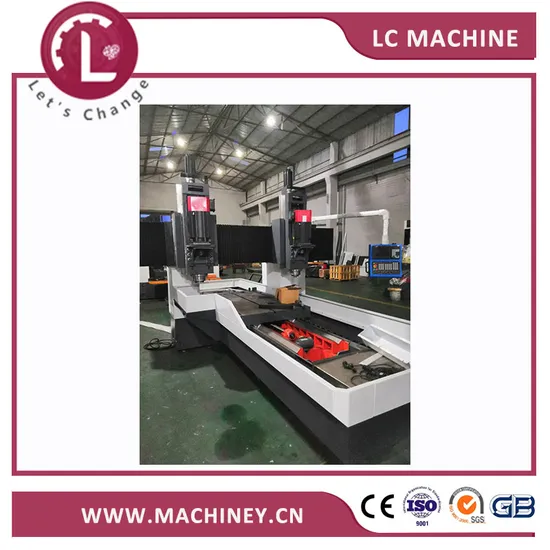

LC-1530MO CNC GANTRY GRINDING MACHINE
Product Introduction

The grinder adopts enclosed frame structure with sufficient rigidity and durability of guide rail. The horizontal feed and vertical feed of grinding head are driven by servo motor with ball screw to ensure high feed precision and improve operation convenience. Using humanized operation control panel, convenient operation and measurement, ensure the accuracy of machine tool.
Base Data

Main Technician Parameters
Item	Description	Unit	Specification
System	Control mode	PLC
Work range	X axis	mm	3000
	Y axis	mm	1500
	Z axis	mm	750
	Inner Width	mm	1900
Worktable	Worktable area	mm	3000×1500
	Max. Loading	kg	8000
	T-groove (number - size * spacing)	mm	22*180-5
	Electric permanent magnet disk	mm	3000×1500
Grinder	Motor Power	KW	18.5
	Grinding wheel specifications	/	Φ500*75*203
	Revolution	rpm	1200
	Main specifications	mm	Φ170
Speed	X/Y/Z axis feeding speed	mm/min	3000/500/500
others	floor area	mm	9500×3800
	weight	kg	23000
	max. height of machine	mm	3500

Main Configuration List
Seq	Item	Specification	Quantity	Producer
1	base plate	Φ100*25
2	set bolt	M20-400
3	tool kit	Wrenches, screwdrivers, etc	1piece
4	grinding wheel	500*75*203	1 set
5	ring flange		1 set
6	balancer		1piece
7	user manual		1 set	E-File
8	ground plot		1 set	E-File

Manufacturing

Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION


Company Profile Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.


After-Sale Service
1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.

FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory. Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.

---
