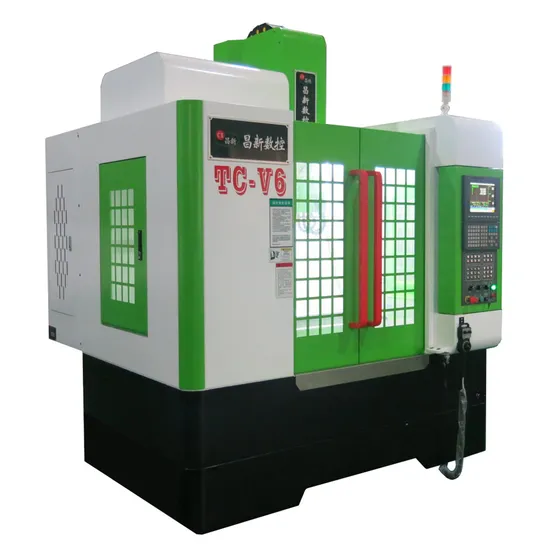

| 5 axis cnc machine center TC-V6 |
| System: | Taiwan Syntec 200MA-5 |
| Motor: | Servo motor:Japan Yaskawa |
| Auto Lubrication System: | auto evenly distributing lubrication |
| Tool Magazine: | Taiwan ATC Arm type tool magazine (24 tools) |
| Bearing: | Japan NSK or German FAG optional |
| X/Y/Z-Axis Travel | 600mm/450mm/450mm |
| Distance from Spindle Nose to Table | 120mm-600mm |
| Distance from Spindle Center to Column Guide Rail | 550mm |
| Working Table Size | 700*420mm |
| Table Max Load | 500kg |
| T Slot | 4pcs,size:18T,Interval:100mm |
| Main Spindle | Taiwan Royal |
| Spindle Speed | standard:12000rpm |
| Spindle Motor Power | 7.5kw |
| X/Y/Z-Axis Motor Power | 2.0kw/2.0kw/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000/48000mm/48000mm/min |
| Cutting Speed | 18000mm/min |
| Spindle Taper Diameter | BT40 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Total Electricity Demand | 20kw |
| Machine Size | 2450*2200*2500mm |
| Machine Weight | 5.0ton |
| Linear guide rail and ball screw | Taiwan Hiwin |
| Accessories | Tool box (1 set) Tool Holder(2 pcs) vise and Lock knife seat (1 set) Machine operating manual Operation and programming manual Servo Motor and Controller Manual High pressure spray gun(1 pcs) Chip conveyor |
| Machine Head Balance System | Comes with counterweight balance system |
| Coupling | German BK3 SW*J |
| Main electrical accessories | German Schneider, Merlin Gerin |
| Circuit breakers and relays | German Schneider, Merlin Gerin |
| Working LED lamp | Taiwan |
| Hand control electronic hand wheel | Taiwan |
Payment:40% deposit,the balance will be paid before shipping.
20-30 days after received the deposit payment.
1.Warranty:One year free warranty and life time maintenance.
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
