US$23.00-45.50
|
100 piece
(MOQ)
|
Basic Info.
Model NO.

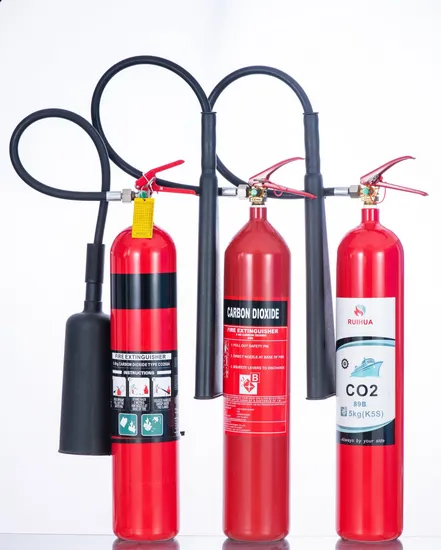

2-5kg fire extinguisher
Function
Storage Pressure Vessel, Reaction Pressure Vessel
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Test Pressure
250bar/315bar
Work Pressure
166.7bar/174bar/210bar/216bar
Wall Thickness
2.56/3.26mm
Transport Package
Carton and Pallet
Production Capacity
700000/Year
Packaging & Delivery
Package Size
20.00cm * 34.00cm * 60.00cm
Package Gross Weight
10.000kg
Product Description
Product Description
All the products will be inspected by TUV auditor and be with TUV inspection certificate.
| BS 5045-8 Seamless Aluminum Alloy Gas Cylinder |
| No. | Type | Outside diameter(mm) | Working pressure (Bar) | Test
pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
|
| 1 | 112-2.0-245 | 112 | 169.3 | 245 | AA6061 | H | 5.1 | 2.0 | 320 | 2.1 | PED |
| 2 | 112-3.0-245 | 3.0 | 450 | 2.7 |
| 3 | 112-4.5-245 | 4.5 | 580 | 3.4 |
| 4 | 117-2.3-245 | 117 | 169.3 | 245 | AA6061 | H | 5.32 | 2.3 | 335 | 2.4 | PED |
| 5 | 117-3.0-245 | 3.0 | 415 | 2.8 |
| 6 | 117-4.5-245 | 4.5 | 590 | 3.8 |
| 7 | 117-2.0-310 | 117 | 216.1 | 310 | AA6061 | H | 6.84 | 2.0 | 325 | 2.7 | PED |
| 8 | 117-2.7-310 | 2.7 | 410 | 3.3 |
| 9 | 117-3.0-310 | 3.0 | 445 | 3.5 |
| 10 | 117-4.0-310 | 4.0 | 565 | 4.3 |
| 11 | 152-4.0-245 | 152 | 169.3 | 245 | AA6061 | H | 6.91 | 4.0 | 360 | 4.4 | PED |
| 12 | 152-7.5-245 | 7.5 | 595 | 6.5 |
| 13 | 152-10.0-245 | 10.0 | 770 | 8.1 |
| 14 | 152-4.0-310 | 152 | 216.1 | 310 | AA6061 | H | 8.89 | 4.0 | 380 | 5.4 | PED |
| 15 | 152-6.7-310 | 6.7 | 575 | 7.6 |
| 16 | 152-10.0-310 | 10.0 | 810 | 10.3 |
| 17 | 203-10.0-245 | 203 | 169.3 | 245 | AA6061 | H | 9.23 | 10.0 | 510 | 10.0 | PED |
| 18 | 203-13.4-245 | 13.4 | 635 | 11.8 |
| 19 | 203-15.0-245 | 15.0 | 700 | 13.0 |
| ISO 9809-1 Seamless Steel Gas Cylinder |
| Serial number | Type | Outside diameter(mm) | Working pressure (Bar) | Test
pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 1 | 103.5-2.3-250 | 103.5 | 174
(PED)
166.7(TPED) | 250 | 34CrMo4 | Concave | 2.0 | 2.3 | 380 | 3.1 | PED
TPED |
| 2 | 103.5-3.0-250 | 3.0 | 475 | 3.8 |
| 3 | 103.5-4.5-250 | 4.5 | 670 | 5.3 |
| 4 | 103.5-2.3-250 | 103.5 | 174
(PED)
166.7 (TPED) | 250 | 34CrMo4 | Convex | 2.0 | 2.3 | 380 | 2.8 | PED
TPED |
| 5 | 103.5-3.0-250 | 3.0 | 475 | 3.5 |
| 6 | 103.5-4..5-250 | 4.5 | 670 | 5.0 |
| 7 | 104.5-2.0-315 | 104.5 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Concave | 2.5 | 2.0 | 340 | 3.4 | PED
TPED |
| 8 | 104.5-2.67-315 | 2.67 | 430 | 4.1 |
| 9 | 104.5-4.0-315 | 4.0 | 605 | 5.6 |
| 10 | 104.5-2.0-315 | 104.5 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Convex | 2.5 | 2.0 | 340 | 3.1 | PED
TPED |
| 11 | 104.5-2.67-315 | 2.67 | 430 | 3.8 |
| 12 | 104.5-4.0-315 | 4.0 | 605 | 5.3 |
| 13 | 116-3.0-250 | 116 | 174
(PED)
166.7 (TPED) | 250 | 34CrMo4 | Concave | 2.18 | 3.0 | 380 | 3.9 | PED
TPED |
| 14 | 116-5.0-250 | 5.0 | 600 | 5.6 |
| 15 | 116-7.5-250 | 7.5 | 860 | 7.6 |
| 16 | 116-3.0-250 | 116 | 174
(PED)
166.7 (TPED) | 250 | 34CrMo4 | Convex | 2.18 | 3.0 | 380 | 3.7 | PED
TPED |
| 17 | 116-5.0-250 | 5.0 | 600 | 5.4 |
| 18 | 116-7.5-250 | 7.5 | 860 | 7.4 |
| 19 | 117-2.67-315 | 117 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Concave | 2.78 | 2.67 | 360 | 4.4 | PED
TPED |
| 20 | 117-5.0-315 | 5.0 | 600 | 6.6 |
| 21 | 117-7.5-315 | 7.5 | 860 | 8.9 |
| 22 | 117-2.67-315 | 117 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Convex | 2.78 | 2.67 | 360 | 4.1 | PED
TPED |
| 23 | 117-5.0-315 | 5.0 | 600 | 6.3 |
| 24 | 117-7.5-315 | 7.5 | 860 | 8.6 |
| Serial number | Type | Outside diameter(mm) | Working pressure (Bar) | Test
pressure (Bar) | Material | Bottom Type | Design wall thickness(mm) | Water Capacity(L) | Height (mm) | Weight (kg) | Certificate |
| 1 | 136-4.5-250 | 136 | 174
(PED)
166.7(TPED) | 250 | 34CrMo4 | Concave | 2.56 | 4.5 | 425 | 5.4 | PED
TPED |
| 2 | 136-6.0-250 | 6.0 | 540 | 6.6 |
| 3 | 136-7.5-250 | 7.5 | 655 | 7.8 |
| 4 | 136-9.0-250 | 9.0 | 770 | 9.1 |
| 5 | 136-4.5-250 | 136 | 174
(PED)
166.7(TPED) | 250 | 34CrMo4 | Convex | 2.56 | 4.5 | 425 | 5.0 | PED
TPED |
| 6 | 136-6.0-250 | 6.0 | 540 | 6.2 |
| 7 | 136-7.5-250 | 7.5 | 655 | 7.4 |
| 8 | 136-9.0-250 | 9.0 | 770 | 8.7 |
| 9 | 137-4.0-315 | 137 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Concave | 3.26 | 4.0 | 390 | 5.8 | PED
TPED |
| 10 | 137-5.33-315 | 5.33 | 490 | 7.1 |
| 11 | 137-6.67-315 | 6.67 | 590 | 8.4 |
| 12 | 137-8.0-315 | 8.0 | 690 | 9.7 |
| 13 | 137-4.0-315 | 137 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 | Convex | 3.26 | 4.0 | 390 | 5.2 | PED
TPED |
| 14 | 137-5.33-315 | 5.33 | 490 | 6.5 |
| 15 | 137-6.67-315 | 6.67 | 590 | 7.8 |
| 16 | 137-8.0-315 | 8.0 | 690 | 9.1 |
| 17 | 154-4.5-250 | 154 | 174
(PED)
166.7(TPED) | 250 | 34CrMo4 |
Concave | 2.89 | 4.5 | 350 | 5.9 | PED
TPED |
| 18 | 154-7.5-250 | 7.5 | 530 | 8.1 |
| 19 | 154-10.0-250 | 10.0 | 675 | 9.9 |
| 20 | 154-15.0-250 | 15.0 | 970 | 13.5 |
| 21 | 154-4.5-250 | 154 | 174
(PED)
166.7(TPED) | 250 | 34CrMo4 |
Convex | 2.89 | 4.5 | 350 | 5.6 | PED
TPED |
| 22 | 154-7.5-250 | 7.5 | 530 | 7.8 |
| 23 | 154-10.0-250 | 10.0 | 675 | 9.6 |
| 24 | 154-15.0-250 | 15.0 | 970 | 13.2 |
| 25 | 156-4.5-315 | 156 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 |
Concave | 3.71 | 4.0 | 350 | 6.9 | PED
TPED |
| 26 | 156-6.67-315 | 6.67 | 480 | 9.0 |
| 27 | 156-10.0-315 | 10.0 | 675 | 12.0 |
| 28 | 156-15.0-315 | 15.0 | 970 | 16.6 |
| 29 | 156-4.5-315 | 156 | 216
(PED)
210
(TPED) | 315 | 34CrMo4 |
Convex | 3.71 | 4.0 | 350 | 6.4 | PED
TPED |
| 30 | 156-6.67-315 | 6.67 | 480 | 8.5 |
| 31 | 156-10.0-315 | 10.0 | 675 | 11.5 |
| 32 | 156-15.0-315 | 15.0 | 970 | 16.1 |
Product quality assurance
Raw material spectrom analysis, hardness test,yield strength test, tensile strength test,nondestructive examination(NDE)(magnetic powder inspection,ultrasonic flaw detection),hytrostatic test,burst test,impact test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Company Profile
Shaoxing Ruiying High Pressure Vessel Co., Ltd. was one professional steel and aluminum gas cylinders manufacturer with the ability of research, development, sales and production capacity of 700000 pcs per year.
Factory is in superior location and convenient transportation, 70KM away from Ningbo port and 190KM away from Shanghai port, with lower transport costs.As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market type approval.With a strong sense of social responsibility, RUIIYING pay special attention to environmental protection and adhere to sustainable development.
As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market certification.
Customer satisfaction is our highest goal, quality is the most important principle guiding our work. Automated production equipment, professional inspection tools guarantee the safe and reliable product performance.
We will continue to enhance our competitive advantages with our "Excellent quality; diligent pursuit" philosophy through a position of strength, innovation, and partnership with our customers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
company culture
Cooperation and win-win make business more friendly and sustainable, caring and teaching for employees to experience love and responsibility.
FAQ
1.Min order quantity?
Q:What's your min order quantity?
A:100PCS
2.Delivery Time?
Q: What is the delivery time of the gas cylinders ?
A: 10Days to 30Days once deposit received and specifications confirmed about the cylinder.
3.Certification?
Q:What certificates do you provide for gas cylinders?
A:We are authorised by PED/ISO/ DOT/ GB / TPED standards.
4.Sample?
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within two week, the lead time is 15-30 days.
5.Technical consultation ?
Q:Can you provide some techincal questions?
A:We would like to supply helpful solutions for all kinds of technical consultation,project design and market application.
>>
