Jinan Wind Solar Hybrid Power System with Grid-Tie Capability

Product Description

Product Description
On Grid Wind Turbine System
On Grid Wind Turbine System
The On Grid Wind Turbine System is a reliable and efficient solution for harnessing wind energy. It consists of a wind turbine, on-grid controller, on-grid inverter, metering device, and power distribution system.
Wind Turbine
High-quality components designed for harsh and extreme environments
Equipped with an electric brake, overcharging protection, and stable output voltage
High efficiency and low mechanical resistance energy loss
Excellent heat dissipation due to the aluminum alloy outer frame and special internal structure
Strong and durable with fully heat-treated aluminum and anti-corrosion properties
Generator designed with special materials to resist corrosion and oxidation
Reliable and long operational lifetime with a 20-year design
Patent-protected design for added exclusivity
Product Details
Imported NSK Bearing: Withstands up to 7000rpm for a lifetime of normal operation
Pure Copper Enameled Wire: Resistant to high temperatures, ensuring power generation
NdFeB Magnet: N35SH model with resistance to 150°C lifetime demagnetization
Pure Copper Electric Slip Ring: More than 85% copper content, no wear, and no maintenance
Convenient Flange Design: Easy maintenance and installation
On Grid Wind Turbine Inverter Performance Characteristics
Main circuit uses DSP chip from American TI company, German Infineon IGBT module, and Japanese Mitsubishi movement for drive protection
SPWM pulse width modulation technology for pure sine wave output
Automatic synchronous tracking with the grid, power factor close to 1, low current harmonic content
Wind turbine input maximum power tracking technology (MPPT)
Power curve of the wind turbine can be set with up to 50 internal expansion points
7-inch color touch screen display for easy system operation and parameter setting
On-grid inverter current closed-loop control for precise adjustment
Wide input DC voltage range to adapt to different occasions
Frequency disturbance detection technology for anti-island control
Comprehensive power protection scheme and self-detection and protection functions
Compact circuit structure with maximum efficiency of ≥98%
Supports RS485, WiFi, GPRS, Ethernet, and other communication methods for real-time monitoring and historical data retrieval
Experience the benefits of the On Grid Wind Turbine System from Jinan Deming Power Equipment Co., Ltd. Harness wind energy efficiently and contribute to a sustainable future.

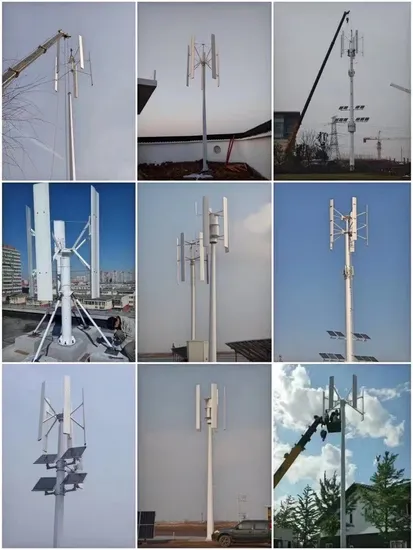

Detailed Photos
Product Parameters

5KW Wind Turbine Technical Parameter
Wind turbine model	DM3.2-5.0KW
Rated power(KW)	5KW
Max power(KW)	6KW
Rated speed(r/min)	380r/min
Rated voltage(Vdc)	220Vac
Rated current(A)	16A
Start torque(n/m)	2n/m
Start-up wind speed(m/s)	2m/s
Rated wind speed(m/s)	9m/s
Safe wind speed(m/s)	35m/s
Generator style	3 phases PM generator
Generator material	Aluminium body,copper wire,Nd-Fe-B
No. of blades	3 pieces
Material of blades	Reinforced fire glass steel
Braking system	Electromagnetic braking control
Tower height(customized)	Pull rod and independent rod
5KW On Grid Wind Turbine Controller Technical Parameter
Wind turbine Rated Power	5KW
Wind turbine max power	10KW
Input voltage range	AC0-330V
Braking voltage (DC)	350V±1%
Manual control	Manual brake,*remote control brake (with communication function)
Automatic control function	Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake
5KW On Grid Wind Turbine Inverter Technical Parameter
Rated output power (AC)	5KW
Max. Output power (AC)	5.5KW
Input voltage rang (DC)	0-450V
MPPT Voltage range (DC)	100V-400V
Max. Input current (DC)	16A
Rated current	17.6A
Allowable grid voltage range (AC)	110V/120V/220V/230V (Single-phase)±20%
Allowable grid frequency range	50Hz/60Hz±10%
