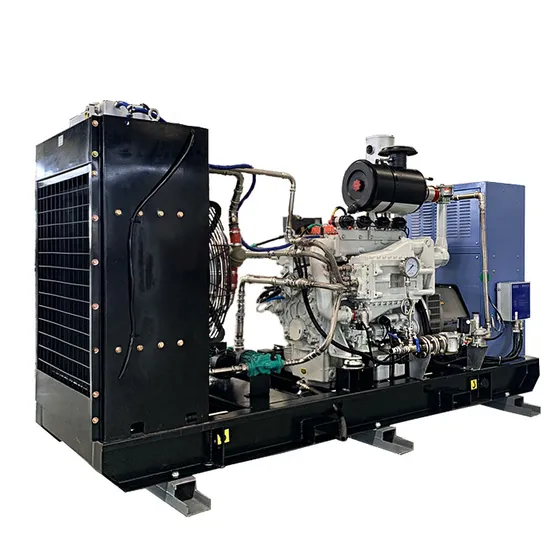

Man E2842le322 400kw 500kVA Natural Gas Engine Generator Set

Product Description

MAN E2842LE322 400kw 500kva natural gas engine generator set
Requirments for natural gas
1.Methane should be at least 80%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8200kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<50mg/Nm3
Our Advantages of Man Engine
High reliable and outstanding performance due to field-tested technology
The engine design is based on continuous working of 24 hours per day, 7 days per week
High Power and maximum efficiency, the best ideal engine for applications of CHP, CCHP, Cogeneration and
distribution energy system
Low operating cost as a result of low levels of lubricant and fuel consumption, as well as extended service intervals(component stability)
Low emissions due to state-of-the-art combustion technologies
Low space requirements due to compact design
Long service life resulting from application-specific-design and tailored machinery-configuration
Engine Overhaul Time is around 50000~60000 hours.

Advantages of our sales service :
1. we have obvious competitive on before-sale and after sale service.
2. our company can provide the products according to your requirements as soon as possible.
3. we have professional engineers to teach you use the generators and sophisticated workers provide 18 months warranty on spare parts .
4. six hours testing before out factory.
5. ISO9001 and CE approval.
6. The technical engineering personnel are qualified and experienced in poviding customers with all-round service
7. fast delivery.
Genset Specifications

Model of genset	PTG-400GF
Model of engine	Man
Type	Four Stroke,Spark Plug Ignition
Model of alternator	Stamford
Rated speed(r/min)	1500
Rated power(kW/kVA)	400KW/500KVA
Rated voltage(V)	400V/230V
Rated frequency(Hz)	50/60
Rated power factor	0.8 lagging
Voltage regulation	Automatic
Supply connecting	3 phase 4 wire
Governor	Electric governor
Control model	Remote electric control, Hand control
Starting method	12V DC electric starting motor
Cooling method	Water cooling system

Engine Specifications

Engine Model	Man/E2842LE322
Rated Power	440kW
Engine Type	In-line, Four Stroke, Electronic Ignition
Rated Speed	1500 rpm
Rated frequency	50Hz
Cylinder No.	6 cylinders in line
Bore ×Stroke	128×142mm
Displacement	21.9L
Coolant heat	106kW
Exhaust heat based on 120°C	157kW
Start Method	Electric
Crankshaft Rotation Direction	Inverse Hour (From Flywheel)
Cooling Method	Open type water tower or circulation water
Aspiration Type	Turbo Charged Inter-cooled
Ignition mode	Spark plug
Connection mode	High elastic
Speed Governor	Electronic
Gas Mixer Formation	Pre-Mix
Rated Fuel Consumption (m³/Kw·h)	0.3m³/Kw·h
Lubricating oil Temperature	<90ºC
Lubricating oil Pressure	345-483 Kpa
Max -exhaust Temperature	600ºC±25

Model List

Genset Model	COP (kW)	Engine Model	Bore*Stroke (mm)	DSPL. (L)	Rotation Speed (RPM)	Elec. Eff. (%)	Thermal Eff. (%)	Total Eff. (%)	Overall dimension (LxWxH)(mm)	Dry Weight (kg)
PTG-50GF	50	E0834E302	108*125	4.6	1500	33.8%	53.4%	87.2%	2800*1050*1550	1600
PTG-100N5	100	E0836LE302	108*125	6.9	1500	35.5%	48.9%	84.4%	3700*1150*1750	2200
PTG-200N5	200	E2876LE302	128*166	12.8	1500	37.2%	48.9%	86.1%	4300*1300*2000	4400
PTG-250N5	250	E2848LE322	128*142	14.6	1500	36.8%	48.7%	85.5%	4300*1300*2000	4600
PTG-400N5	400	E2842LE322	128*142	21.9	1500	38.6%	44.4%	83%	5200*2000*2100	6400
PTG-520N5	520	E3262LE202	132*157	25.8	1500	38.8%	48.3%	87.1%	5500*2000*2100	7500

Optional parts
Factory and Certificates
Various model in our workshop
FAQ: Q1.Are you a factory or trading company?
We have two modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
HAITAI take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.

---
