Basic Info.
Harvest method
Vibration fall
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008
Application Field
Agriculture
Row Distance(mm)
350 - 750 mm
Machine Type
Corn Harvester
Video Outgoing-Inspection
Provided
Warranty of Core Components
1 Years
Applicable Industries
Farms
Key Selling Points
Easy to Operate
Transport Package
Standard Package
Specification
2090mm*2240mm*3250mm
Production Capacity
12000 Set/Years
Packaging & Delivery
Package Size
280.00cm * 230.00cm * 180.00cm
Package Gross Weight
2500.000kg
Product Description

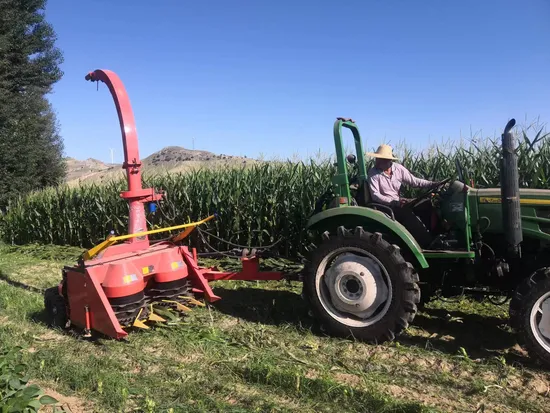

Forage Harvester Silage Grass Cutting Harvester Corn Silage Harvesting
Model
| DH-80S
| DH 90 Twin
|
Dimensions mm
| 2090mm*2240mm*3250mm
| 2090mm*2950mm*3250mm
|
Matched power
| 30-120HP
| 50-120HP
|
Row distance
| -
| 67/71/75cm
|
Cutting height
| Less than 5mm
|
|
Number of knives
| 10
| 10
|
Throw distance
| 10m
|
|
Throw height
| 5m
|
|
PTO rpm
| 540
| 540
|
Row No
| 1 row
| 2rows
|
Working speed
| 0.7Ha/h
| 1ha/h
|
Chips length (min)
| 4mm
| 4mm
|
Chute adjustment
| hydraulic
| hydraulic
|
weight
| 480kgs
| 650kgs
|
Packaging Details
sweet corn silage harvester tractor machines for sale will be packaged in standard export wooden box.
Port
Shanghai /Guangzhou /Qingdao or as your request sea port.mini sweet corn silage combine harvester tractor machines for sale
Lead time:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |
You can adjust the blade quantity to change the size of the forage , the size of the forage size can be 0.5 mm to 6 mm adjustable.
Product Description
Working width( meter )
| 1.4
| 1.65
| 2.25
| 2.55
|
Chopped forage size (mm )
| 5-60
|
Machine weight ( kg )
| 900
| 1200
| 1400
| 1800
|
Matched tractor power ( hp)
| >60
| >90
| >120
| >180
|
Throw cylinder rotate angle
| 360 'c
|
Material throw distance (meter)
| >8
|
Stubble height ( cm )
| 5
|
Main shaft speed (r/min)
| 1000
| 1250
|
Blade quantity (pcs)
| 12
| 12
| 12
| 12
|
Capacity ( t/h)
| 18
| 21
| 30
| 35
|
The inside structure of the blade and switch plates are our patent products ,and the work efficient is high .
