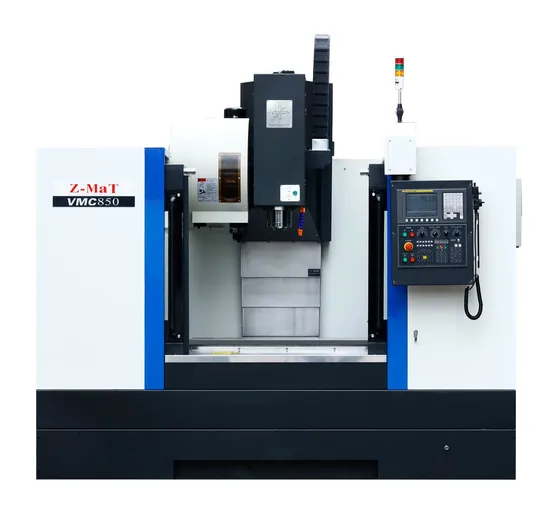

Vmc850 Vertical Milling and Drilling CNC Machining Center

Product Description

Standard Features:
Automatic Tool Changer
Ergonomic CNC Panel & MPG
Automatic Lubrication System
Full Machine Enclosure
Operator Door Safety Lock
Heat Exchanger
Air-Conditioned Electrical Cabinet (VMC500/ VMC700E/ VMC850/ VMC1050E)
Air System w/ Handheld Air Gun

Product Details
Optional Features:
CNC Controlled 4th Axis Rotary Table
Different CNC Control System
Higher Speed Spindle
Spindle Center Coolant
Chip Conveyor
Air Conditioner (Except VMC500/ VMC700E/ VMC850/ VMC1050E)
Machine Characteristics:
Precision linear guideways on X/Y/Z axis - provide high speed rapids
High quality castings provide a solid structure and foundation
Full enclosed way covers
Direct drive servo motors on all axis
Drum or arm type ATC available
High speed rapids standard - higher speeds available on axis and spindle
Specifications:

	Item	Unit	VMC850
Table	Table size	mm	1200 x 520
	T slot(width x nos. x distance)	mm	18 x 5 x 90
	Max. load	Kg	750
Travel	X/Y/Z Travel	mm	850/500/600
	Spindle nose to table	mm	130-700
	Spindle center to column	mm	580
	Guideway type		LM: XYZ
Spindle	Spindle type		BT40
	Main servo motor	KW	7.5/11.0
	Spindle speed	rpm	8000, *12000
Feed & Magazine	X/Y/Z axis rapid traverse	m/min	30/30/30
	ATC capacity/type	No. /type	24/Arm
	Max. weight of tool	Kg	8
Dimension & Weight	Power capacity	kVA	21
	Dimension	mm	3000 x 2200 x 2350
	Weight (about)	Kg	6500
Note: *means optional, LM means linear motion guide way.

---
