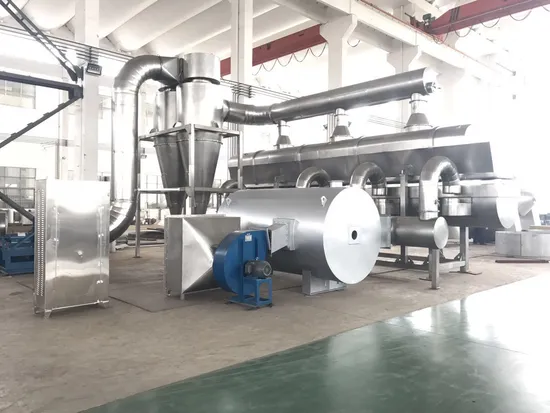

Zdg Series Vibrating Fluidized Bed Dryer for Citric Acid Citrin Vitamin

Product Description

PRODUCT CATEGORIES Product Description ZDG Series Vibrating Fluidised Bed Dryer The drier is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugar and so on, for drying, cooling and weting

Model	Fluidized Bed Area (m2)	Inlet Air Temperature (ºC)	Outlet Air Temperature (ºC)	Evaporation Capacity (kg/h)	Vibrating Motor
					Model	Power(kw)
ZDG3×0.3	0.9	70 to 140	40 to 70	20 to 35	YZS8-6	0.75 × 2
ZDG4.5×0.3	1.35	70 to 140	40 to 70	35 to 50	YZS10-6	0.75 × 2
ZDG4.5×0.45	0.025	70 to 140	40 to 70	50 to 70	YZS15-6	1.1 × 2
ZDG4.5×0.60	0.7	70 to 140	40 to 70	70 to 90	YZS15-6	1.1 × 2
ZDG6×0.45	0.7	70 to 140	40 to 70	80 to 100	YZS15-6	1.1 × 2
ZDG6×0.6	3.6	70 to 140	40 to 70	100 to 130	YZS20-6	1.5 × 2
ZDG6×0.75	4.5	70 to 140	40 to 70	120 to 170	YZS20-6	1.5 × 2
ZDG6-0.9	5.4	70 to 140	40 to 70	140 to 170	YZS30-6	2.2 × 2
ZDG7.5×0.6	4.5	70 to 140	40 to 70	130 to 150	YZS30-6	2.2 × 2
ZDG7.5×0.75	5.625	70 to 140	40 to 70	150 to 180	YZS40-6	3.0 × 2
ZDG7.5×0.9	6.75	70 to 140	40 to 70	160 to 210	YZS40-6	3.0 × 2
ZDG7.5×1.2	9.0	70 to 140	40 to 70	200 to 280	YZS50-6	3.7 × 2
ZDG7.5×1.5	11.25	70 to 140	40 to 70	230 to 330	YZS50-6	3.7 × 2
ZDG8×1.8	14.4	70 to 140	40 to 70	290 to 420	YZS75-6	5.5 × 2

PRODUCT INTRODUCTION Principle of work
Raw material is fed into the machine and moves forward heat exchange with damp raw material. Then the damp air is vibration. The hot air passes through fluidized-bed and carries out continuously along with the level of fluidized-bed under the action of exhausted out through cycione separator and dust collector and the dry product is discharged through discharge outlet.
Feature
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life span
The fluidized state is stable and no dead angle and phenomenon of broken out
It is good in regulation and wide in suitability
It is small for damaging to the surface of raw material.The equipment can be used for drying raw materiais that are easy broken.The drying effect can not be affected even if raw materials gave anomalous shape
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure.The environment of operation is clean
PRODUCT APPLICATION ZDG Hollow Blade Drying Machine for Drying Beer,Dry chicken, chicken essence, dryer, dry chicken production line, chicken essence
