Perfect Laser 150 Watts Desktop Gold Silver Jewelry Steel Copper Alloy Brass Laser Spot Welder Welding Machines Price

Product Description

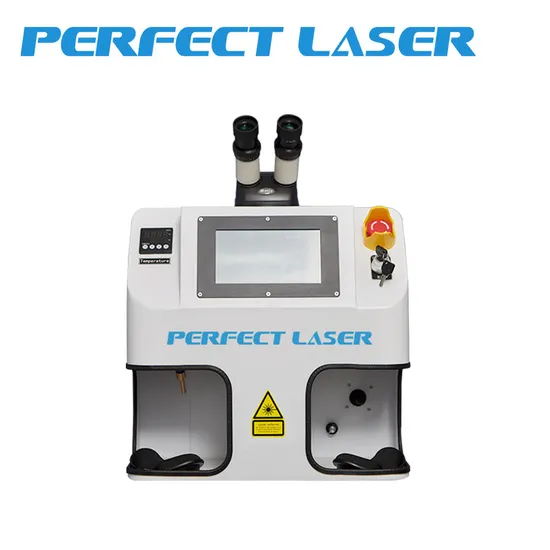

Perfect Laser 100W 150 Watts Desktop Gold Silver Jewelry Steel Copper Alloy Brass Laser Spot Welder Welding Machines Price Model: PE-W100A

Product Description Perfect Laser's PE-W150A is a new high-efficiency and high speed jewelry spot welding machine that can achieve various welding effects.
Jewelry laser welder uses high energy laser pulse to heat the material in small areas locally.The energy of laser radiation diffuses to the interior of the material through heat conduction, melting the material and forming a specific melting pool.
This jewelry welder uses the world's very powerful automatic shading system, which eliminates the eye irritation during work time and reduces the sense of fatigue.Due to its unique advantages, jewelry spot welding machine has been used in gold and silver jewelry processing and welding of micro and small part successfully .

Product Features 1. The PE-W100A jewelry spot welding machine is very compact, can be put in desk, water chiller is integrated, plug to play.
2. Humanized design, ergonomic, long-time work without fatigue.
3. Small thermal impact area, high welding quality, welding joints pollution-free, high efficiency and environmental protection.
4. With a microscope and a CCD, double observation system, the CCD is built into the control screen, reducing the external space of the jewelry laser welder.
5. This jewelry spot welding machine adopts the British imported ceramic concentrating cavity, corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, concentrating cavity life (8-10 years), xenon lamp life is more than 8 million times.
6. Energy, pulse width, frequency, and spot size can be adjusted in a large range to achieve a variety of welding effects.
7. This jewelry welder can weld narrow places, deep cavity repair welding, will not damage the surrounding walls.It does not deform the mold product or sink around the melting tank.
8. Special argon protection, the control system can freely adjust the inlet and exhaust time, the supplementary welding site and base material will not be oxidative burns.

Sample & Application The jewelry spot welding machine mainly used for the punching and spot welding of gold and silver jewelry.
It can also be used in cold processing of high alloy steel, hot forging high alloy steel, nickel-containing tool steel, steel, copper alloy, brass, copper, high toughness aluminum and other advanced metal materials of welding alloy.

Technical Data

Product Name	Gold Silver Jewelry Laser Spot Welding Machine
Model	PE-W100A
Laser Medium	Nd3+:YAG
Laser Power	150W
Laser Wavelength	1064nm
Pulse Width	≤15ms
Pulse Frequency	≤30HZ
Welding Spot Diameter	0.2-2mm
Filler Wire Diameter	0.1-0.5mm
Power Consumption	3KW15A
Power Supply	AC220V+5% Single Phase
Operation Interface	A 7-inch LCD Touch Screen Is Bilingual In Chinese And English
Locating System	Microscope With Coaxial CCD
Cooling Typed	Water Cooling, Water Injection Of 3.5L
Machine Dimensions	790*430*590mm
Machine Net weight	65KG
Work Environment	Temperature 5ºC-35ºC, Humidity 5%-85%.
Training	VCD training + 24 hours afters-sales service
Warranty	24 month

Machine Details
Packaging & Shipping
Perfect Laser Co., Ltd. (China) Contact:Lucy / Sales Department Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).

---
