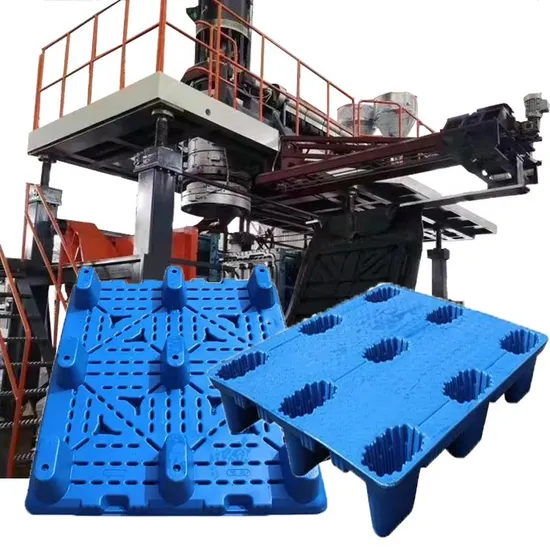

HDPE Plastic Pallet Blow Molding Machine/Plastic Machinery/Plastic Making Machine

US$150,000.00 1 Piece (MOQ)

Basic Info.

Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
1year
Clamping Force (kN)
800n
Hollow Part Volume
1000L
Mold Platen Size(Width)(mm)
1600 mm
Mold Platen Size(Height)(mm)
1500 mm
Air Pressure(MPa)
0.8 MPa
Product Name
1000L Water Tank
Transport Package
Film or Wood
Specification
8*5*5.5m
Trademark
WEIER
Origin
China

Product Description

Product Description
WEZK-1000L water tank Blow Molding Machine
our factory specializes in manufacturing,researching and developing plastic machinery, as a pilot and industrial base of QUST, we fulfilled QUST technology advantages, and continuously develop advanced technology, quality and reliable automatic Blow Molding machine,can produce 1_5000L,1 layer-4 layers, plastic hollow container, which is widely used in tools packaging, auto parts, agricultural machinery, road infrastructure, craft and decorating,entertainment facilities etc; APPLICATION
PRODUCT DETAILS
System
Item
1 layer
2 layer
3 layer
4 layer
Extruder
Screw diameter(mm)
120
100/100
90/100/90
80/90/90/80
L/D
28/1
Driving motor power(KW)
90
55/55
45/55/45
30/45/45/30
Heating power(KW)
40
46
50
50
Extrusion capacity(Kg/h)
260
320
360
360
Moulds die head
Materials storage volume(Kg)
45
Parison control
100 dot MOOG wall thickness controller
Heating power(KW)
40
60
75
85
Moulding clamping system
Mould size(mm)
1600x1500
Mould thickness range(mm)
910-1300
Clamping force(KN)
800
Electrical control Cabinet
Temperature controlling
SIEMENS temperature-control modules
PLC
SIEMENS
Touching screen
SIEMENS
Hydraulic system
Main oil pump motor(KW)
37
Servo motor(KW)
7.5
Basic Parameter
Max.Volume of product
1000
Outer size L*W*H(M)
8*5*5.5


Total power installed(KW)
180
210
260
310
Average power consumption(KW)
100
120
160
210
Weight(T)
21
28
31
38

OUR WORKSHOP
Our Advantages
Company Profile
Qingdao Weier Plastic Machinery Co., Ltd. is engaged in macromolecule science and producing plastic machinery. Our production lines, such as aluminum plastic composite pipe unit, PVC foam pipe unit, plastic profile, board and sheet units, HDPE gas pipe unit, and PP-R (PEX) pipe unit, are characterized by stable performance and advanced technology which are welcomed by our customers. The new developed PVC plywood board unit, plywood decorative strip and foamed sheet unit, macromolecule paint free board unit and PET strapping band unit are in leading place in China. The new developed TPU high pressure oil transportation and TPU moving oil warehouse equipment in war industry have been put into production, which has been approved by authority in China. Our products have been exported to many countries in the Middle East, Africa, and Southeast Asia. Please feel free to contact us for more information.

FAQ
Q1: How to visit our Factory? (not a trade company)
A:Qingdao Airport → Pick you up
Q2: How does your factory do the quality control?
A:"QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing.
Q3: How about the installation?
A: Option 1: Our engineer installs the machines for you, also train your staff until they can run the machine independently.
Option 2: You learn installation in our factory.
Q4: Do you have after-sale service?
A: The supplier is responsible for installation, debugand training, we will realize guarantee of repair; Replacement and refund of substandard products within one year after the machine leaves factory. Fittings of the machine will supply at preferential price after one year
Q5: How about the payment term?
A:30% deposit, 70% after testing machine in our factory Before Shipping By T/T, VISA,L/C.
