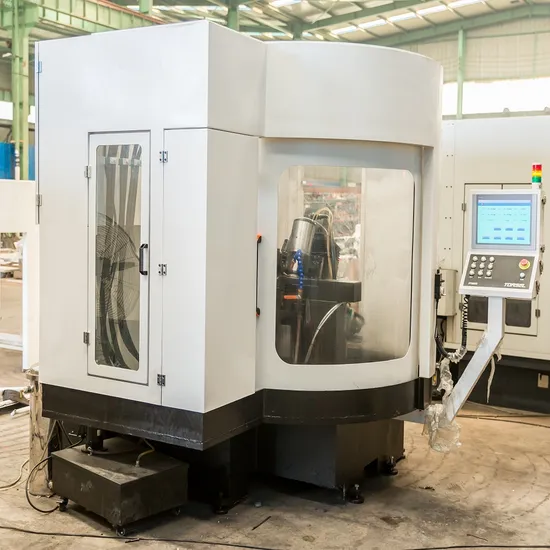

Automatic Top/Face/Notch Multi-Functional Cold Saw Blade Sharpener

Product Description

Automatic Top/Face/Notch Multi-Functional Cold Saw Blade Sharpener
1. Machine Features and Advantages
1) Able to grind cermet and tct saw blade.(more suitable for cermet tip grinding). It is multi-functional, can grind top/face/chamfer/groove/chip breaker slot
2) Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically
3) High accuracy: <0.015mm or even better. this machine is with the highest precision
4) Good stability: use specially treated cast iron base, no deformation, low vibration,long term use.
2. Machine Parameters

Saw diameter	120~810mm
Hook angle	25°~ -30°
Top angle	8°~ 30°
Top chamfer angle	45°~ -45°
Face chamfer angle	30°~ -30°
Bore diameter	12~120mm
Pitch	2-80mm
Top wheel size	Φ125mm*Φ32mm*16mm
Notch wheel size	Φ125mm*Φ32mm*9mm
Face wheel size	Φ150mm*Φ32mm*14mm
Wheel speed	2500~3500RPM
Grinding speed	6~30s/tip
Power	5KW
Dimension	2500*1800*2200mm
Weight	3680kg

3. Machine Details
ginding top and face
chip breaker slot
Exhibition show
FAQ
1. What products do we have?
Four categories saw blade sharpening machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpening machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
