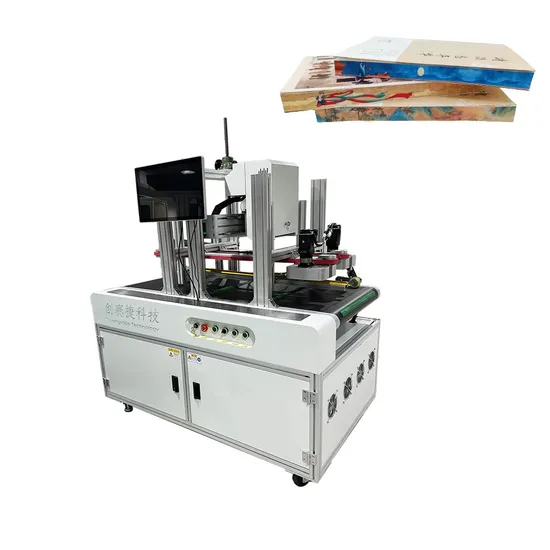

Book Edge Printing Machine Book Edge Device

Product Description

Book edge digital printing machine, matching a full set of digital printing process, high precision, high efficiency, low loss, equipped with the full process, so that the production operation is more simple and easy. No need to wait, no need for plate making, import the required print content, boot can be printed. The speed of the assembly line can reach 40m/min, Color CMYK printing, A variety of small batch customization, color printing without the plate.
Advantage:
Import picture can be printed, without plate, without color adjustment
Color one time print, bright color
No minimum order quantity, one pcs book can be printed
It can be dried without drying and occupies a small space
Adopt water based environmental friendly ink, healthy and odorless.
The same specifications books, support the combined printing of multiple images.
Low cost, high efficiency, print cost is about usd0.3 for 100pcs books.
Very suitable for urgent orders, small orders, color orders, ecommerce orders.
Technical Parameters
Ink: Eco-friendly water-based ink
Resolution: 1200dpi
Printing width: 33mm/210mm (optional)
Book width: 70mm-300mm
Book Thickness: 0mm-230mm
Book height: 70mm-400mm
Printing speed: 0-40 meters/minute
Support color: red, yellow, blue, black (color)
Printing mode: single/multiple books
Input power: 220v50Hz/60Hz
Machine power: 2.5KW
Machine weight: about 350kg
Operating System: WIN7/WIN10
Support image format: BMP/JPG/PDF/TIFF
Working Environment: Temperature 15-35C Relative Humidity 20%-80
Equipment Size: 1500mm*900mm*1500mm
