F70 Cutting Press/Ares Cutting Press

Product Description

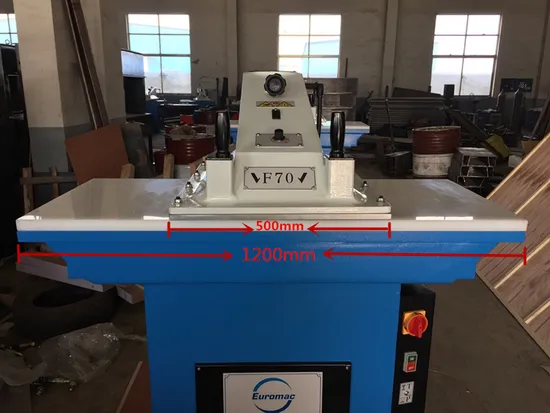

F70 HYDRAULIC SWING ARM CUTTING MACHINE
Product Description 1.The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption.
4.The machine has CE.

Product Parameters

Model	F70
Max. Cutting Force	27 T
Maximum Stroke	100mm
Cutting Table	1200x500(mm)
Arm Width	500 mm / 610mm
Motor Power	1.1kw
Electric Supply Voltage	3x440/415/400/380 /220V, 50/60 Hz
	single phase 240/220V, 50/60 Hz
Net Weight With Oil	840Kg
Gross weight	980Kg
Packing Size	1100 x1100x 1570(mm)

Machine configuration

Machine configuration
Solenoid valve	Camel brand,made in TAIWAN
Oil pump	Camel brand,made in TAIWAN
Sealing ring	NOK brand,made in ITALY and Japan
Press switch	Fox brand,made in Italy
Potentiometer	Made in TAIWAN

Detailed Photos
Certifications
