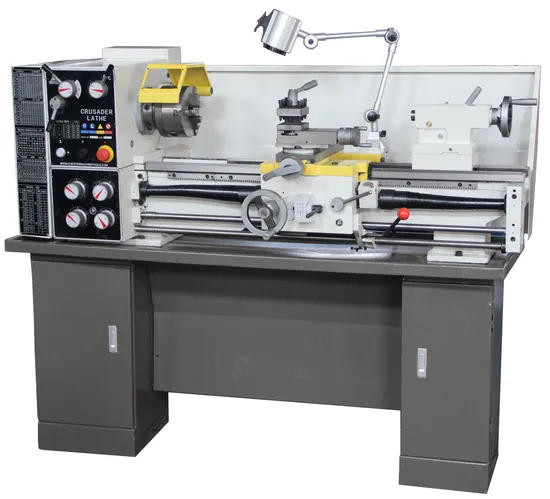

Mechanical Lathe Machine Price with Three Jaw Chuck (CQ6230A)

Product Description

Mechanical Lathe Machine Price with Three Jaw Chuck (CQ6230A)
Feature:
> Precision ground and supersonic frequency hardened bed ways.
> The spindle is supported with precision roller bearing.
> Headstock gears are made of high quality steel, ground and hardened
> Removable gap is provided for larger diameter work
> Easy operating gear box has various feeds and thread cutting function
ModelCQ6230A
Max. Swing over bedΦ 310mm
Max. Swing over cross slideΦ 180mm
Max. Swing over gapΦ 450mm
Distance between centers750mm/910mm/1000mm
Width of bed181mm
Spindle boreΦ 38mm
Taper of spindle boreM. T. 5
Range of spindle speeds65-1810(1400)rpm
Taper of tailstockM. T. #3
Metric threads can be cut0.4-7mm
Inch threads can be cut4-60 T. P. I.
Range of longitudinal feeds0.0527-1.2912mm/rev
Range of cross feeds0.011-0.276mm/rev
Max. Travel of cross slide130mm
Max. Travel of top slide75mm
Max. Travel of tailstock quill100mm
Motor power1.1KW. 3PH/1.5KW. 1PH
Standard accessories: 3 Jaw chuck(Φ 160mm), Change Gears Set, M. T. #3 Dead Centers, M. T. #5/3 Reduction Sleeve, Oil gun, Splash Guard, Foot stands, Tool Box&Tools, Oil Tray
Optional accessories: 4 Jaw chuck(Φ 200mm), Face Plate, Steady Rest, Follow Rest, Work Light, Foot Brake System, Coolant System, Live Center, Drill Chuck+Drill Arbor, Leadscrew Guard, Chuck Guard, Localizer, Clutch For Feed Rod, Quick Change Tool Post, Digital Readout(2 Axis)

Model	CQ6230A
Max.swing over bed	Φ310mm
Max.swing over cross slide	Φ180mm
Max. swing over gap	Φ450mm
Distance between centers	750mm/910mm/1000mm
Width of bed	181mm
Spindle bore	Φ38mm
Taper of spindle bore	M.T.5
Range of spindle speeds	65-1810(1400)rpm
Taper of tailstock	M.T.#3
Metric threads can be cut	0.4-7mm
Inch threads can be cut	4-60 T.P.I.
Range of longitudinal feeds	0.0527-1.2912mm/rev
Range of cross feeds	0.011-0.276mm/rev
Max. travel of cross slide	130mm
Max. travel of top slide	75mm
Max. travel of tailstock quill	100mm
Motor power	1.1KW.3PH/1.5KW.1PH
Standard accessories:	Optional accessories:
3 Jaw chuck(Φ160mm)	4 Jaw chuck(Φ200mm)
Change Gears Set	Face Plate
M.T.#3 Dead Centers	Steady Rest
M.T.#5/3 Reduction Sleeve	Follow Rest
Oil gun	Work Light
Splash Guard	Foot Brake System
Foot stands	Coolant System
Tool Box&Tools	Live Center
Oil Tray	Drill Chuck+Drill Arbor
	Leadscrew Guard
	Chuck Guard
	Localizer
	Clutch For Feed Rod
	Quick Change Tool Post
	Digital Readout(2 Axis)

---
