Product Details
Product Description
Product Description
A rail fastening system is a set of fasteners that is used to connect steel rail and railway sleepers. Generally, the railway fastening system is required to have a reliable connection, simple structure, and features of elasticity, shock absorption, and insulation. SKL rail fastening system is one kind of hot rail fastening system in the railway materials market.

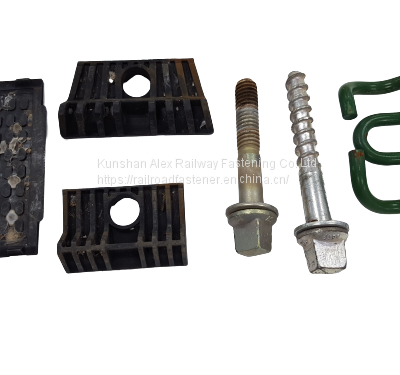

As for the components of the SKL railway fastening system, including SKL rail clips, rail pad, screw spike, tie plate, washer, plastic dowel, track bolt and nuts, etc. Kunshan Alex Railway Fastening Co., Ltd could supply customers with all these components, no matter whether the materials are steel, plastic, or rubber.
Just send the details of the products you required, and we'll produce them within a short time.
If you don't have drawings or no design team, just send us a sample, and we'll measure and make drawings and do the rest for you.
Specifications of SKL rail fastening system
| SKL tension clip | Ss35 screw spike | Flat washer | Plastic dowel | Guide plate | Rail pad |
| Pieces required | 2 | 2 | 2 | 2 | 2 | 1 |
| Material | 60Si2CrA, 60Si2CrA, 38Si7 | Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# | Q235 | HDPE, Reinforced Nylon 66 (PA66) | Reinforced Nylon 66 (PA66) | EVA, or rubber |
| Size | skl1,skl3,skl12,skl14 | M24×150mm | Uls7 | For different sizes of screw spike | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
|
| NOTE | Hardness: 42-47HRC 5 million cycles without breaking. Standard: DIN17221, GB/T1222 | Standard: ISO898-1, UIC864-1, and NF F500-50 | Standard: EN10025, EN10139 | To insert into the concrete sleeper | Customized products are available. |
Rail Clip Inspection and Packing
Inspection Machines
1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine to test metallic materials
4. Automatic Impact Testing Machine
5. Metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. Metallographic Specimen Polishing Machine
9. Metallographic Specimen Pointing Machine
Why choose us
01 Your one stop railway fasteners supplier. With over 25 catagories and 500 items, we manufacture railway fasteners and rail car components, can meet your customized requirements in details.
02 Reasonable and competitive prices without sacrificing quality. We do every step from purchasing material to shipment all by our effective team so our prices are the most competitive under same quality.
03 Stable lead time: match your different schedule of different products. Normally 20-30 days is available in producing, inspection, and packing.
04 We attach importance to product safety. We care about the safety of using our products, with all our workers and technicians working together, it is guaranteed that our railway products reach the international standards, such as AREMA,EN,GB, BS, UIC, DIN, JIS,etc and customers’ requirements.
>>
