Product Details
Product Description
Product Description
Basic Info.
ItemDetails
| Model NO. | HP-CSD6014 |
| Slot Type | CTS |
| Customization | Customized |
| Condition | New |
| Warranty | 1 Year |
| After-sales Service | Lifetime Technical Support |
| Mining Project Target | Sand, Mud, Slurry, Silt, Slush, Sludge, Salt |
| Water Flow Rate | 5000-7000m³/H |
| Certifications | CCS, BV, ISO9001, CE, ZC, DNV, Patent |
| Dredging Depth | 14m-22m |
| Control System | PLC and 100% Full Hydraulic System |
| Discharge Range | 1500m-4000m |
| Pump Technology | Warm |
| Engine | Weichai/Jichai/Cummins |
| Delivery Time | In Stock, Ready for Dispatch within 7 Days |
| Transport Method | In Bulk |
| Packaging for Transport | Included |
| Specification | 20 Inch |
| Trademark | HengPeng |
| Origin | Huanglou, Qingzhou City, Shandong Province, China |
| HS Code | 89051000 |
| Production Capacity | 100 Sets per Year |
1. Introduction
The Cutter Suction Dredger, constructed of steel and of the non-self-propelled, dismountable type, is capable of berthing and dredging in any waters, both in coastal areas and inland rivers, under conditions similar to those in navigation area "A" or below the "A"-line specified in the code for inland river steel engineering ship manufacture of the People's Republic of China.
This dredger can be utilized to excavate and transport cohesive sediment of a class not exceeding III, as specified in the code for dredging engineering construction technique issued by the Ministry of Water Resources (MWR) of the People's Republic of China.
The hull of the dredger comprises three pontoons: one main pontoon (housing the engine room) and two side pontoons. All components are dimensioned to facilitate transportation by road, rail, or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, which is achieved using bolts at deck level, the hull's front and rear, and hooks at the bottom. Additionally, the dredger is powered by a marine engine, with the main engine driving both the dredge pump and the hydraulic pump. The hydraulic pump, in turn, powers other equipment such as the cutter, swing and ladder winches, and the spud rams.
The hull is constructed entirely of welded steel, providing the dredger with the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon using bolts. The hull steel plate utilized is CCSB (shipbuilding steel plate), ensuring durability and reliability in harsh dredging environments.
2.Specification
| Cutter Suction Dredger Specs HP-CSD 6014 |
| No. | Item | Parameter | Remark |
| 1 | Product Name | HP-CSD6014 |
|
| 2 | Total Length | 39.0m |
|
| 3 | Hull Length | 29.0m |
|
| 4 | Hull Width | 9.2m |
|
| 5 | Hull Depth | 2.4m |
|
| 6 | Average Draft | 1.5m |
|
| 7 | Main Engine | 1650kw (2211HP); 1 set
|
|
| 8 | Auxiliary Engine | KW; Generating unit; 1 set |
|
| 9 | Dredging Depth | 14~16m |
|
| 10 | Pump Water Flow Capacity
| 50003/h
|
|
| 11 | Discharge Distance
| 1500m
|
|
| 12 | Cutterhead Dia | m |
|
| 13 | Pump Discharge Dia | mm | SHIJIAZHUANG |
| 14 | Pump Suction Dia | mm |
|
| 15 | Solid Capacity | 1000-1400m3/h |
|
| 16 | Working Weight of machine | 300Ton |
|
| 17 | Spud Pile |
|
|
| 18 | Hydraulic Winch |
|
|
| 19 | Navigation Ability |
|
|

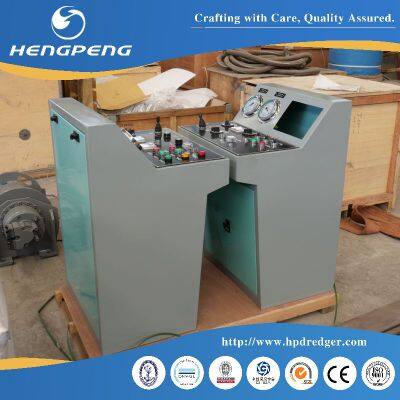

| 20 | Operation System | PLC Control System and 100% Full Hydraulic system
|
|
| 21 | Spare Part | Diesel engine tools,oliseal,eletric,welder and so on |
|
3.Feature
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5.Completely assembled and rigorously tested before delivery, ensuring reliability.
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from our stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available
4.Application scenarios
River Dredging: The Cutter Suction Dredger plays a crucial role in river dredging. It efficiently removes silt, sand, and other obstacles from riverbeds to ensure smooth navigation and enhance flood control capabilities.
Port Construction: In port construction, the dredger is often used for dredging harbor basins, channels, and berthing areas. By excavating and cleaning from port waters, it provides sufficient water depth and a safe berthing environment for ships.
Coastal Protection: The Cutter Suction Dredger can also be utilized in coastal protection projects. By excavating and transporting sediment, it helps construct protective embankments, beaches, and other structures to resist natural disasters such as wave erosion and storm tides.
Lake Management: In lake management, the dredger is used to remove silt and pollutants from lake bottoms, improving water quality and the ecological environment.
Water Conservancy Construction: In water conservancy construction, the dredger is used for dredging and remediation of reservoirs, dikes, and other water conservancy facilities. By excavating and clearing obstacles from these facilities, it ensures their normal operation and effectiveness.
Land Reclamation: The Cutter Suction Dredger can also be used in land reclamation and land creation projects. By excavating and transporting sediment, it can fill low-lying areas or create new land for agricultural production and urban development.
5.After-sales service
(1) Lifetime Technical Support
(2) Sending engineers to assemble and test the machine within the period as agreed in the contract.
(3) Making an excellent filing of customers for long-term following-up service.
(4) 24-hour service response
(5) 12-month warranty with free repair services
(6) Imely professional service and solutions
(7) Efficient supply of maintenance spare parts
(8) Dredger Abroad,Dredger Working Case
>>
