Product Description
Product Description
Grommet Machine set: 1 grommet machine, 3 Dies (different size) & 900 Grommets Eyelet Hand Press Tool
Eyelet machine, Press machine, Attaching Machine
2 Models:

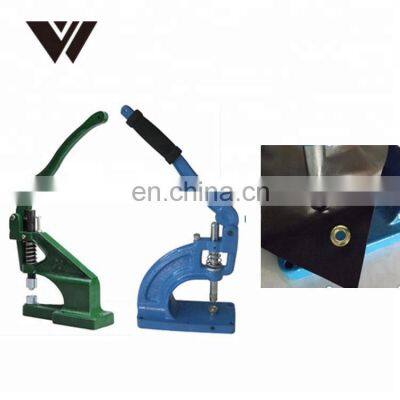

GROMMET MACHINE SDGM-3
GROMMET MACHINE SDGM-5
PRODUCT SPECIFICATIONS
Color: Green / Blue
Footprint Dimensions:3.5''w*1.5''h*9.25''d
Weight: 5-8kg
Acceptable Grommet Die Sizes:#0, #1, #2, #3, #4
#2 Grommet Die Included( Pre-installed)
PRODUCT PARTS
1- Grommet Machine
2- Top Grommet Die *
3- Bottom Grommet Die*
*Replace thes parts to change die size
PRODUCT SET-UP
STEP 1
Remove all parts from the box and place on a clean, flat surface.
STEP 2 -Optional
Carefully select the permanent location for the grommet machine(1). With the grommet machine(1) in position, make the placement of the holes. Set the grommet machine(1) to the side, and pre-drill the holes into the work bench. Move the grommet machine(1) back into position and fix it in place with appropriate length screws to get a solid grip into the workbench.
STEP 3
Select the correct size grommet die to fit your grommet (the grommet machine(1) comes standard with a #2 grommet Die, other sizes sold separately).
Attach the grommet die to the grommet machine(1) by screwing the top gromet die (2) into the hold in the bottom of the vertical bar on the grommet machie(1), and by screwing the bottom grommet die (3) into the hold in the base. (other dies are replaced in the same fashion)
STEP 4
Holding the male grommet, with the piercing shaft facing down, place it on the bottom side of the top grommet die(2). The top grommet die should hold the grommet in place.
Place the female grommet with the smooth side facing down into the tray on the bottom grommet die (3).
STEP 5
Place the material between the grommet dies (2,3) and align the desired location of the grommet with the piercing shaft of the male grommet.
Firmly press down on the Handle. (you will have to exert some force in order to fully pierce the material and bond the grommets)
STEP 6
Repeat steps 4 and 5 for all other desired grommet locations.
STEP 7
Remove the residual material from the center of the grommets.
STORAGE
Place all product parts into box and store in a cool, dry location or leave fixed to work bench.
CARE
To clean, wipe with damp cloth.
grommet machine set:
Including one grommet machine+3Dies+900sets eyelet(300sets for each size)
MASS PRODUCTION PICTURE
>>
