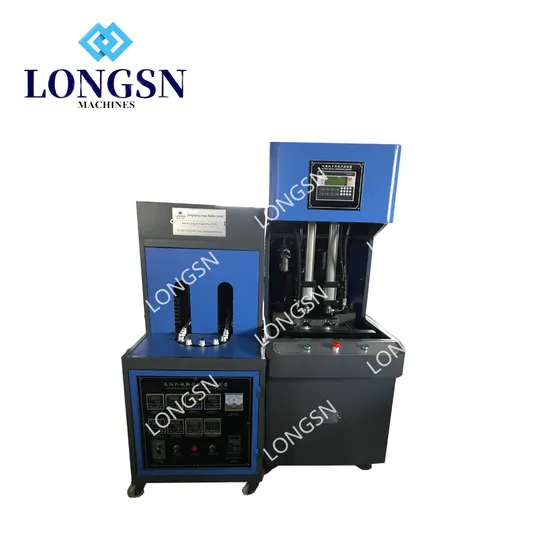

5 Gallon 4gallon 15liter Drinking Water Pet Bottle Blow Molding Making Machine One Blower One Heater Low Cost

Product Description

5 Gallon 4Gallon 15Liter Drinking Water PET Bottle Blow Molding Making Machine One blower One heater Low Cost This Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.
1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.
Specification:
1.Type:Semi Automatic
2.Capacity:400-600BPH
3.Suitable bottle size:5 gallon
Technical parameter:

TYPE	ITEM	MEASUREMENT	Combined type	Standard type
END PRODUCT	Material	/	PET/PP/PE/PC	PET/PP/PE/PC
	Volume	L	0.05-2.5(2-cavity) 3-6(1-cavity)	0.05-2.5 (2-cavity) 3-6 (1-cavity)
	Theoretical output	Pcs/h	0.05-2.5L/1700 3-6L/800	0.05-2.5L/850 3-6L/400
	Max.length	mm	360	360
	max.diameter	mm	180	180
MOULD PLATE	Max.mould plate dimension(L×H)	mm	420×500	420×500
	Max.mould thickness	mm	160-240	160-240
	Clamping force	KN	90	90
	Mould opening stroke (adjustable)	mm	200	200
AUXILARY	High pressure Compressor M3/Mpa	KW	>=0.70/3.0×1set 22	>=0.7/3.0×2sets 22
	Precision air filters	M3/Mpa	>=1.0/3.0×2pcs	>=1.0/3.0×2pcs
MAIN MACHINE ELECTRICITY	Power	KW	12	12
	Voltae/Frequency	V/HZ	220-380/50-60
MACHINE SIZE AND WEIGHT	Main body dimension(L×W×H)	M	1.45×0.6×1.75	1.45×0.6×1.75
	Main body weight	T	0.6	0.6
	Conveyor dimension(L*W*H)	M	1.40×0.62×1.25	1.40×0.62×1.25
	Conveyor weight	T	0.22	0.22
SAFTY	Auto-emergency alarm	SAFETY INTER-LOCKING DEVICE

Packaging & Shipping:
Our service: Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)
FAQ:
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
