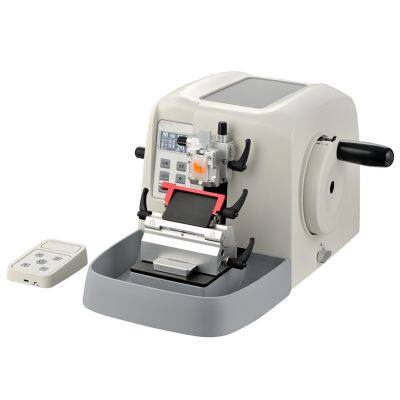

| Model No.APS-5500 Specification List | |||||
| Parameter | Section thickness setting range | 0.25 - 100μm 0.25 – 2.5μm increment 0.25μm 2.5 – 5μm increment 0.5μm 5.0 – 10μm increment 1μm 10 – 30μm increment 2μm 30 – 60μm increment 5μm 60 – 100μm increment 10μm | |||
| Trimming thickness setting range | 1 – 600μm 1 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 50μm increment 5μm 50 - 150μm increment 10μm 150 - 600μm increment 50μm | ||||
| Retraction Setting Range | 0-100μm ( 0 is off ) 5-10-15-50 (optional) | ||||
| Whole layer clearance distance Range | 10-6000μm 10-12-15-20-25-5000-6000μm | ||||
| utting/Trimming count number | 0-9999 | ||||
| Memory position of clamp head | Two position set | ||||
| Feed speed adjust | 2000μm/s | ||||
| The optional separate wireless controller | |||||
| Minimum setting of sectioning thickness | 0.25μm | ||||
| Precision and error | ±1% | ||||
| Maximum specimen size | 60*70mm (optional clamp) | ||||
| Total Horizontal Specimen Feed | 30mm | ||||
| Vertical specimen stroke | 70mm | ||||
| Movement range of the base of blade holder base | 0-65mm (front to back) | ||||
| Movement range of the blade press plate | 0-20mm | ||||
| Specimen clamp rotation | At any angle within 360 degrees | ||||
| Specimen orientation system | XY -8º | ||||
| Technical Data | Working voltage | AC220V±10% 50Hz (standard model) AC110V±10% 60Hz | |||
| Power | 100W | ||||
| Dimension | Net weight | 29KG | |||
| Size | 480*410*310mm(W*D*H) | ||||
