3 Axis CE Approved Quartz Countertop Cutter CNC Sink Cutout Machine

Product Description

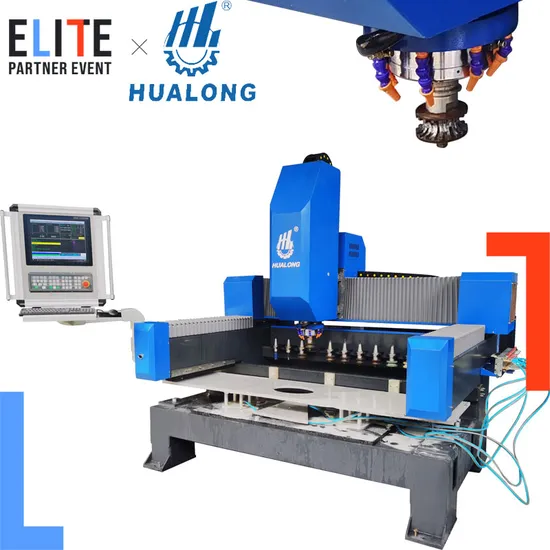

Stone Sink CNC Workcentre HLNCm-1308 Plus is a small 3 axis CNC work center with auto-tool change for stone countertop sink cutting, profiling and polishing. It doesn't take up much space but will be a work-horse for your team and a great way to improve efficiency in yourfabrication operation. It's modern and simple to use thanks to Hualong experience in making stone machines for more than 30 years. It's one of the best CNC machine on the market for countertop processing.
Main Features
*Full CNC capabilities: 3-axis control
*User-friendly programming and operation
* High-performance servo motors
* High precision with ball screws
* Smooth and fluid axis movements
* Quick and easy learning curve
* Space-efficient design
* Open frame design, accommodating slabs of any length
* Easy and low maintenance requirements
* Workpiece can be locked securely in two ways, by pneumatic locking pistons with movable working bench or by vacuum suction cups at optional.
Stone Processing Types
* Cut-out by finger bit
*Shaping and polishing
* Undermount sink cut-outs
* Faucet holes
* Recessed drainer/drain grooves
* Engraving and writing

TECHNICAL DATA FOR HLNCm-1308 Plus
Working Area	1400 x 900 mm
Z-axis Stroke	370 mm
Tool Holder Tang	BT40
Tool Pickup Station	11 pcs
Command	G code
Max. X-axis and Y-axis Speed	26000 mm/min
Max. Z-axis Speed	4000 mm/min
Spindle Rotating Speed	0-8000 rpm/min
Power of Main Motor	7.5 kw
Power of Oil Cooling System	0.95 kw
Power of Vacuum System	2.3 kw
Dimensions (LxWxH)	2800 x 2200 x 2400 mm
Working Voltage	AC380V/50HZ

WHAT WILL YOU CREATE?
* Countertops
* Bas-reliefs
* Funeral tablets
* Commemorative plates
* Decorative pieces
Detailed Images
Control System -- CNCSyntec CNC
system
paired with Italian software
and a
touchscreen for effortless setting and automated processing.
This system simplifies machining tasks, ensuring precision and enhanced efficiency.


Servo Motor & DriverBrand: JMC
servo motors with integrated drives, ensuring seamless digital integration with the CNC system and providing robust control for the X, Y, and Z axes.

Linear Square GuideBrand : Hiwin
Origin: Taiwan, China
Renowned for top-quality products, ensuring high precision cutting and extended lifespanacross the 3-axis system.
3 Axis Structure: Z-axis -- Ball screw
X/Y axes -- Rack & Gear system

Electrical ComponentsBrand:Siemens, etc.
Premium electrical components are utilized to ensure stable and reliable performance.
All electrical components are meticulously housed and expertly wired within a dedicated electrical cabinet. This strategic design ensures effortless access and hassle-free servicing whenever necessary. All
wiring is clearly labeled, enabling customers to easily navigate the cabinet for any required service or maintenance.

Automatic Lubrication System
Brand: Yong Sheng
The automatic oil feeding and lubrication system simplifies routine maintenance, reducing both effort and waste.

Tool Station
Quantity: 11 pcs
Equipped with 11 storage positions for processing tools, ensuring ample space and organization.
Tools can be automatically changed as needed, enhancing workflow efficiency.
Working Bench
Movable working bench make it easy to load and unload the slab processed. The Open structure make no-limits for the length of the slabs received. The slab can be fixed immediatley with pneumatic locking pistons.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
