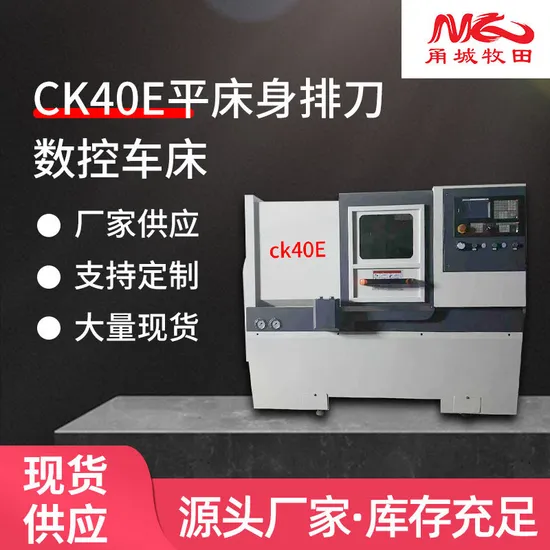

Ck40e Flat Rail CNC Lathe

Product Description

CK40E flat rail CNC lathe main configuration

NO.	Name	Specification and model	Quantity
1	Flat bed	Material HT300	1set
2	X, Z axis linear guide	30/30	4groups
3	X, Z axis ball screw	25/32/C3	2groups
4	Lead screw bearing	760204DBB/760204DF	1group each
5	Sleeve spindle unit	A2-5/¢150	1group
6	Hollow rotary cylinder	TK54P	1pcs
7	Collet/collet	A2-5+M48*1.5	1group
8	Spindle motor	3.7KWservo	1group
9	System	980TC3	1set
10	X, Z axis motor and drive	4Nm/4Nm Absolute value	1group each
11	Electrical component		A number of
12	Hydraulic workstation	0.75KW single valve	1group
13	Cooling water pump	120W	1set
14	Automatic lubrication system		1set
15	Machine lamp	LED	1lamp
16	Tool holder, tool holder	Four-station electric tool holder	1pcs
		Drill and tap holder	1pcs each
17	Brake device	Pneumatic disc brake	1group
18	Power head	110-2Z long and short axis	1group
19	The power head drives the motor	6Nm servo	1group

Our Company
Our compamy was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger. Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence. Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents. Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery Packing Details : International Heat Treatment Standard Export Wooden Package. workbench and the guide surface rust-proof oil daub, and oil film paper cover. Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ Q: Are you trading company or manufacturer ?
A: We are factory. Beilun MAK machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.

---
